Universal Port Methanol Injection Nozzel, Water or Methanol

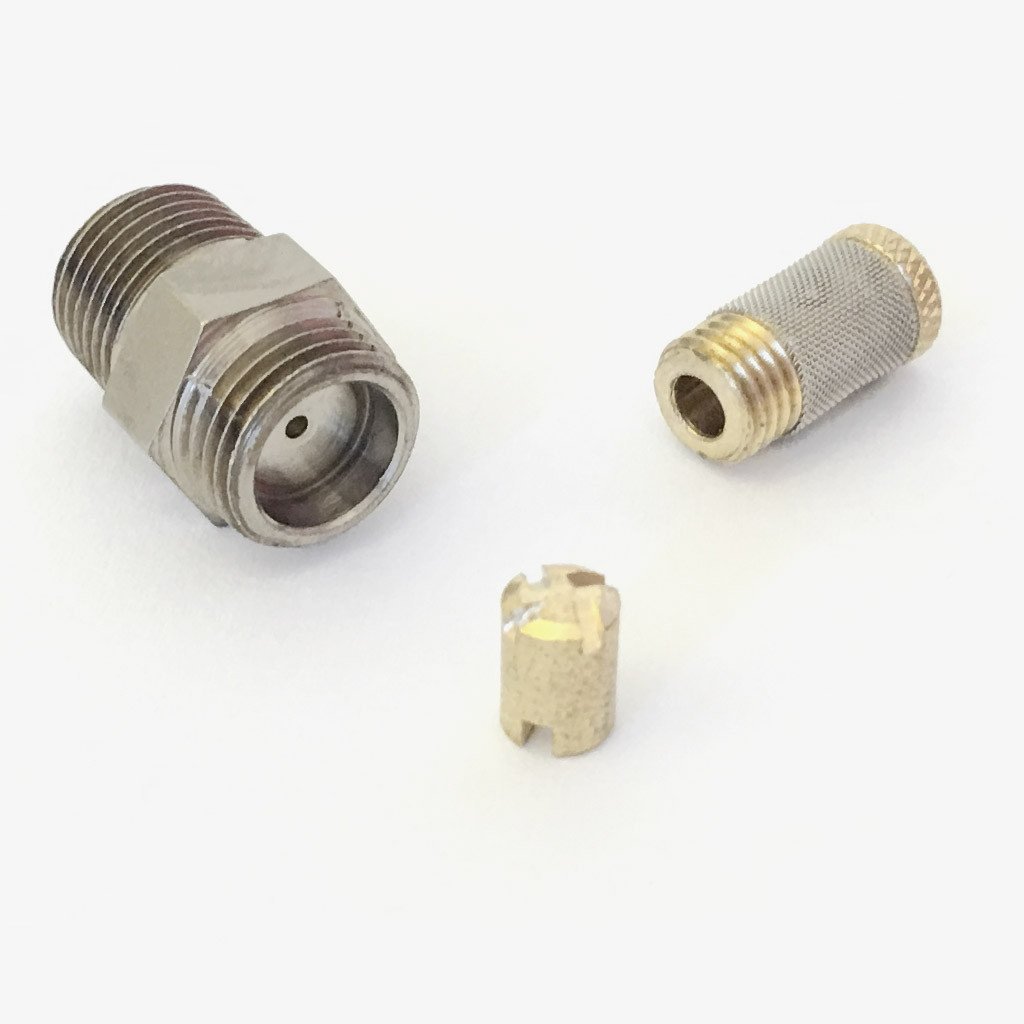

Features Include:
.110" recessed orifice
80 degree full cone spray pattern
Nickel plated brass
7/16" wrench flat for easy installation and removal
Removable 80 micron filter
Size stamped on each nozzle
1/8th NPT threads on both sides
Special Notes:
Nozzle flow rates are based at 100 psi.
63 cc per minute is equal to 1 GPH
1 cc is equal to 1 ml
Quick Jetting Guide:
100% water target 8-10% of fuel flow
50/50 mix target 15–20% of fuel flow
100% methanol target 20–25% of fuel flow
If you don't know fuel flow you can do the following.
Horsepower @ crank x .5 = CC jetting (pure water)
Horsepower @ crank x 1.0 = CC jetting (50/50 mix)
Horsepower @ crank x 1.5-2.0 = CC jetting (pure methanol)
For example. 1000 horsepower. You would use 500cc pure water, 1000cc 50/50 mix and between 1500-2000cc pure methanol. Keep in mind these are figures to start with and do not take into consideration all the variables that we have found to effect jetting size. There are many other variables to consider.

Contents Include:
Nozzle (1)
Special Notes:
Nozzle flow rates listed are based at 100 psi.
63 cc per minute is equal to 1 GPH
1cc is equal to 1 ml

Available Sizes:

0.50 GPH / 32 CC Per Minute
0.75 GPH / 47 CC Per Minute
1.0 GPH / 63 CC Per Minute
1.5 GPH / 95 CC Per Minute
2.0 GPH / 136 CC Per Minute
2.5 GPH / 158 CC Per Minute
3.0 GPH / 189 CC Per Minute
3.5 GPH / 221 CC Per Minute
4.0 GPH / 252 CC Per Minute
5.0 GPH / 315 CC Per Minute
6.0 GPH / 378 CC Per Minute
7.0 GPH / 441 CC Per Minute
8.0 GPH / 504 CC Per Minute
9.0 GPH / 567 CC Per Minute
10 GPH / 630 CC Per Minute
12 GPH / 756 CC Per Minute
14 GPH / 882 CC Per Minute
16 GPH / 1008 CC Per Minute
18 GPH / 1134 CC Per Minute
20 GPH / 1260 CC Per Minute
25 GPH / 1575 CC Per Minute
30 GPH / 1890 CC Per Minute
35 GPH / 2205 CC Per Minute

Specify size of Injector you wish to order:
