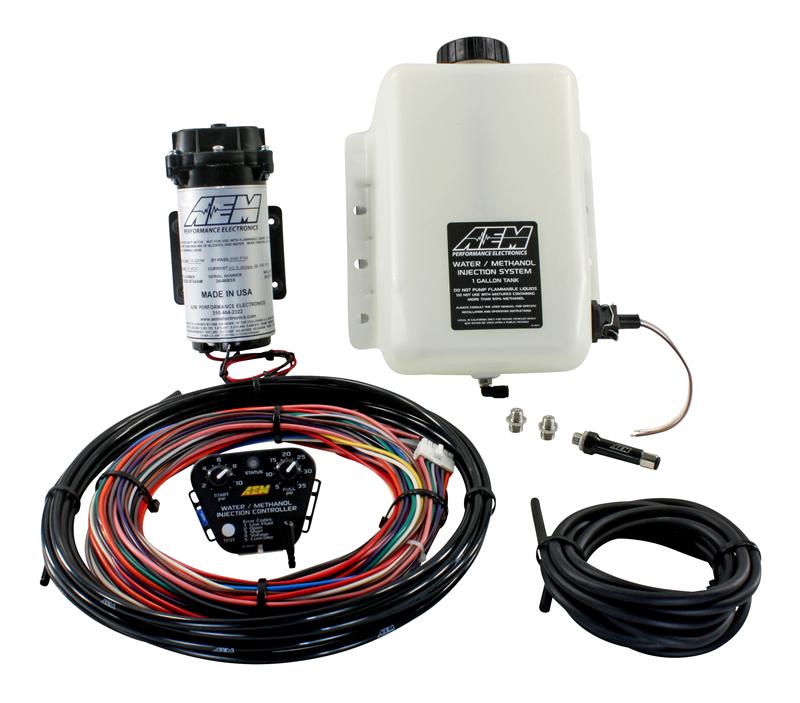

AEM V2 1-Gallon Water/Methanol Injection Kit with Internal MAP Sensor for Corvette, Camaro and others

V2 Water/Methanol Injection Kit; Standard Controller; Internal MAP w/ 35psi max, 200psi WM Pump; Conductive Fluid Level Sensor; 1 Gallon Reservoir

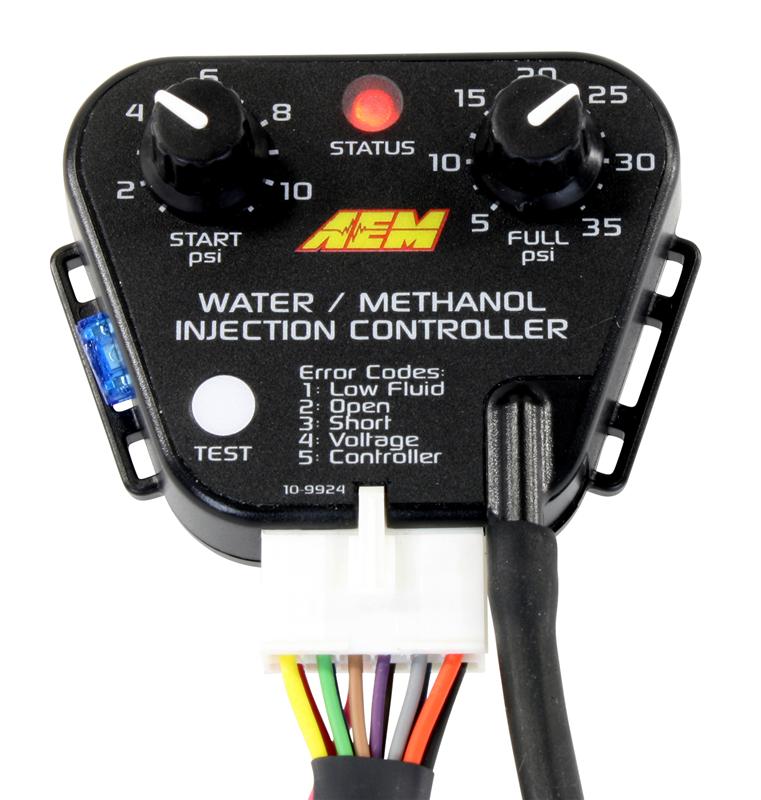

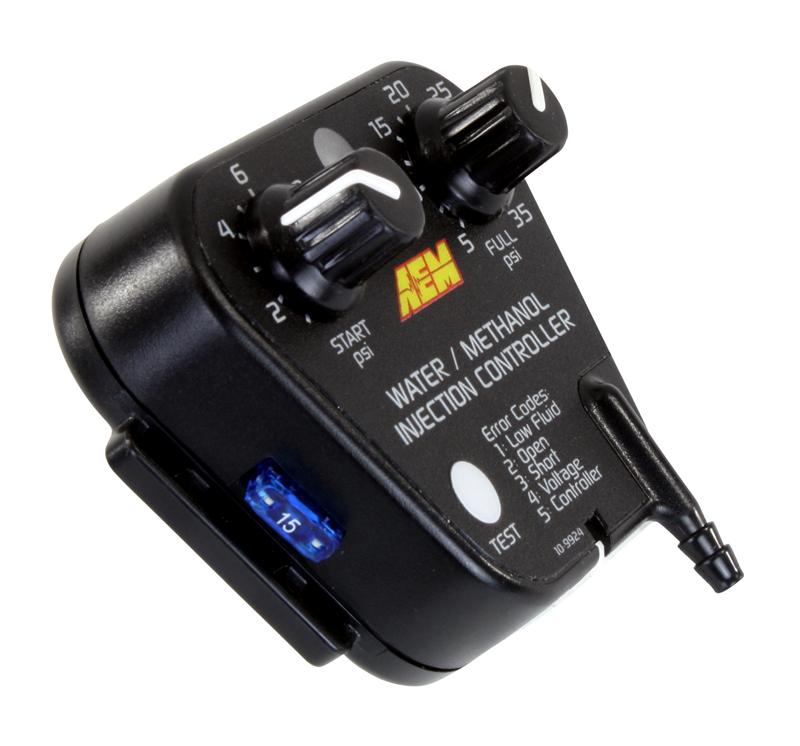

Boost Dependent controller features on-board MAP sensor with large adjustment knobs, integrated plug for harness connection, integrated fuse, covered status light and test button for enhanced splash resistance and mounting tabs

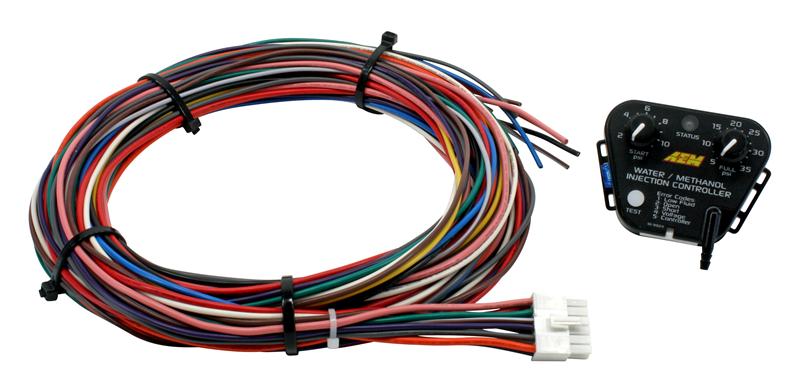

Wiring harness is terminated with a positive-lock connector on one end with color-coded wires to ease installation, power and ground wires for the pump and additional wire for optional on/off fluid solenoid
Internally-bypassed water/methanol injection pump does not cycle on/off and provides quiet, smooth operation; it features robust construction including integral hose fittings
Three interchangeable injector nozzles to cover a wide variety of HP levels (250cc/min, 500cc/min and 1,000cc/min) 1 gallon tank with integral conductive low-fluid sensor and positive lock connector

Water/Methanol injection for gas engines is a proven means for effectively reducing engine inlet air temperatures and suppressing harmful detonation on forced induction and high performance naturally aspirated race engines. This allows racers to reliably increase boost and advance ignition timing-without using high-octane racing fuel-for power gains of up to 20 percent. AEM's Water/Methanol Injection Systems utilize the most robust hardware combined with more advanced features than any other comparably priced water/methanol system. The on-demand progressive controller in AEM's Boost Dependent Water/Methanol Injection kit bases injection flow on manifold pressure using an on-board MAP sensor (up to 35 PSI of boost) to ensure the proper amount of water/methanol injection at all points along an engine's power curve.

The AEM Water Injection Kit is a safe and economical way to reduce air inlet temperatures to increase boost pressure for more power. Lower air inlet temperatures allow users to advance timing without having to run higher-octane fuel. This is the most complete kit available on the market straight out of the box- no additional parts required.

* STANDARD WATER INJECTION KIT*
* Universal kit includes everything you need for installation
* Progressive, controller-driven 150 PSI pump
* One-gallon tank with integral fluid level sensor
* Dash light for system status and low fluid warning
* Alcohol Compatible (up to 50% in solution with water)
* Progressive controller, provides boost-dependent
variable flow
* Output provided to either decrease timing or boost if the system runs out of fluid or detects an error
* Includes three jets to match your power requirement
* HD WATER INJECTION KIT*
* Kit includes everything needed for installation
* Large-capacity 5-gallon reservoir with integral fluid level sensor
* Boost Safe lets you retard the timing or reduce boost if the system runs out of fluid or detects an error
* Progressive, controller-driven 150-PSI pump provides boost-dependent variable flow
* Dash light relays system status and low fluid warning
* Methanol & alcohol compatible (up to 50% in solution with water)
* Includes jets to match your power requirements
* Reduces exhaust gas temperatures (EGTs) and inlet air temps on turbo-diesel and gas applications
