Nitrous Outlet 97-04 Corvette Battery Tray Dedicated Fuel System (Battery relocation required)

Custom built
1 Gallon Fuel Cell
Includes Walbro in tank fuel pump
Includes Aeromotive fuel regulator
Capable of flowing high or low pressure
This item is not kept in stock, this item is made when ordered.

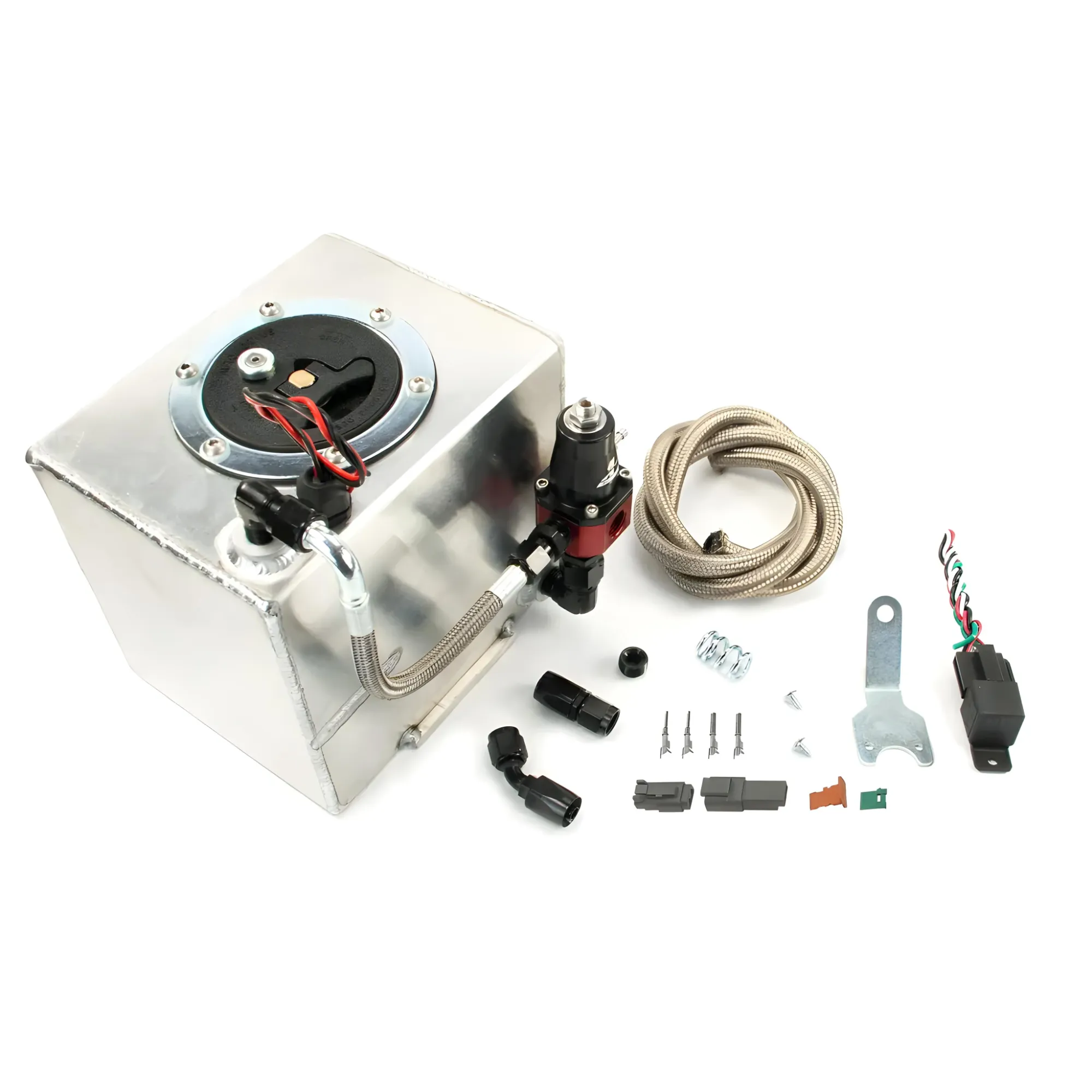

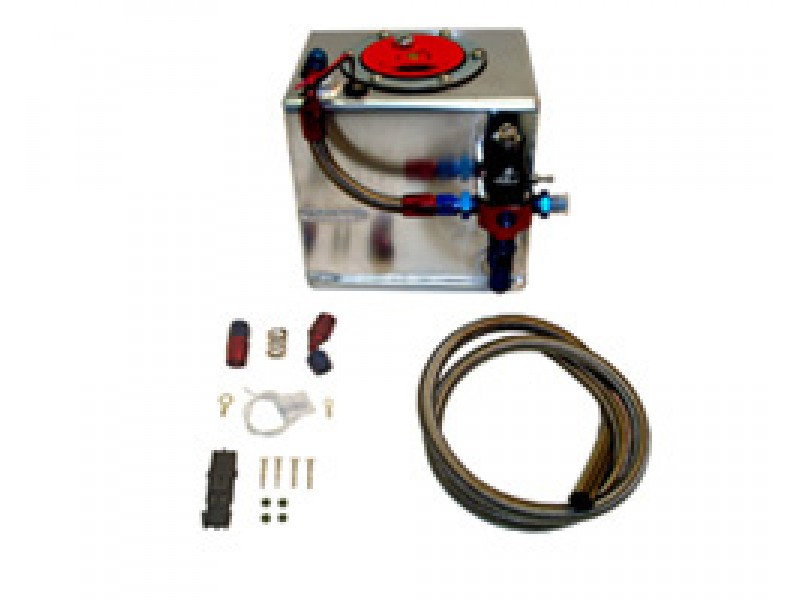

Heavy Duty Construction. Nitrous Outlet's dedicated fuel systems come complete with a custom built hand welded 1 gallon fuel cell, mounting brackets, Walbro in tank fuel pump, Aeromotive fuel regulator, Aeroquip 6 An hose, fuel lines, and fittings.

Race Proven. All systems are designed to flow high or low pressure by changing a spring in the fuel regulator.

Application. Nitrous Outlet dedicated fuel system for 1997 - 2004 Corvette. The stock battery hold down clamps fasten this unit in. So there is no drilling on the car required. Battery relocation is required to use this system. An aftermarket air box is required. This system comes setup for 1 fuel solenoid. If your application has 2 fuel solenoids you will you need to purchase the needed upgrade.

*Note This item is not kept in stock, this item is made when ordered. Battery relocation is required to use this system. An aftermarket air box is required. (Anodizing and laser etching available, call for info.)
Additional Information
SKU  00-12013
Vehicle Make  GM
Vehicle Model  Corvette
Vehicle Year  1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004
Fuel Pump  Walbro 255L
Fuel Regulator  Aeromotive
Fuel Cell Construction  Aluminum
Fuel Pressure  Adjustable 3-60 psi
Fuel Cell Dimensions  No
Fuel Cell Size  1 Gallon
