Nitrous Outlet 2010+ Camaro SS with FAST 102 Intake Manifold Nitrous Oxide System!
Also Fits Corvette C6 Models with 102mm FAST Intake.
Flow Up To 400 HP Anodized Billet Aluminum Nitrous Plate 400+HP Solenoids E85 Compatible With Different Jetting All Hardware, Electrical, and Jetting Included Includes Jetting for 50-100-150-200 HP
Flow Up To 400HP. This system comes out of the box with everything you need to spray 200HP, but can spray up to 400HP with additional jetting.
Superior Atomization. This injection plate has 6 specially designed nitrous and fuel discharge ports that completely saturate the air intake charge with the best atomized mixture possible. For higher horsepower levels proper distribution into the air stream is critical for even cylinder to cylinder distribution.
Wet Nitrous Plate. This system includes a billet aluminum plate to fit 102mm Fast intakes and is capable of flowing up to 400 HP of nitrous. Each billet plate has a black anodized finish with CNC engraved logo and fuel/nitrous labels.
Vehicle Specific. Nitrous Outlet vehicle specific nitrous systems are the safest, best fitting, and most tuner friendly systems available.This system is designed to specifically fit the 2010+ Camaro using the 102mm FAST intake, including vehicle specific solenoid brackets, custom pre-bent hardlines, and application specific hardware for the best fitment and cleanest, easiest install on the market.
Complete System. This system includes all of the necessary components; billet aluminum nitrous plate, 50-200 HP jetting, hardware, gaskets, and wiring to properly install a wet nitrous system on your vehicle.
Wide Open Throttle Activation. This system includes a wide open throttle (WOT) switch that only allows the system to be activated when the motor is at full throttle. This safety feature will help in preventing engine damage and lean spikes.
Application. This system is specifically designed to fit 2010+ F-Body using the 102mm FAST intake manifolds. For C6 corvettes the Katech idler pulley is required.

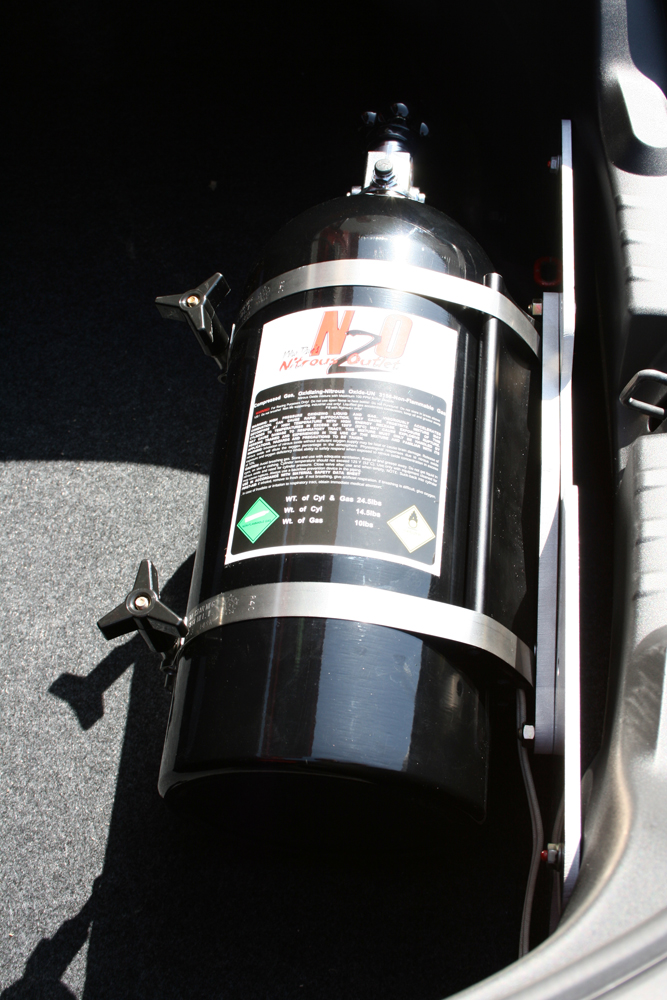

Wide Range of Bolt on Nitrous Accessories! After we carefully designed our Nitrous system we did not stop there. Here is a list of our 2010 custom accessories. 1. Cup holder Nitrous switch panel. 2. Console Nitrous switch panel. 3. Custom bottle mount that will let you install your bottle with out drilling any holes in the car! 4. Dedicated fuel systems 5. Billet heater to work in conjunction with our billet bottle mount.
Number of Stages |
Single Stage |
Max Flow (Per Stage) |
400 |
Dry/Wet |
Wet |
Number of Solenoids |
2 |
Nitrous Solenoid Size |
.122 Orifice |
Fuel Solenoid Size |
.177 Orifice |
Relay and Harness Included? |
Yes |
Fuel Adapter Fitting Included? |
Yes |
Included Jetting (in Horsepower) |
50-100-150-200 |
Fuel Pressure |
55 PSI |
Single Or Dual Stage |
Single Stage |
Type Of Fuel Rail |
Stock Fuel Rails |
Solenoid Bracket(s) |
Universal |
Main Feed Line Size |
6AN |
Hard or Soft Line (From Solenoids) |
Hard Line |
Vehicle Make |
Universal |
Vehicle Model |
Camaro |
Vehicle Year |
2010, 2011, 2012, 2013 |
|
