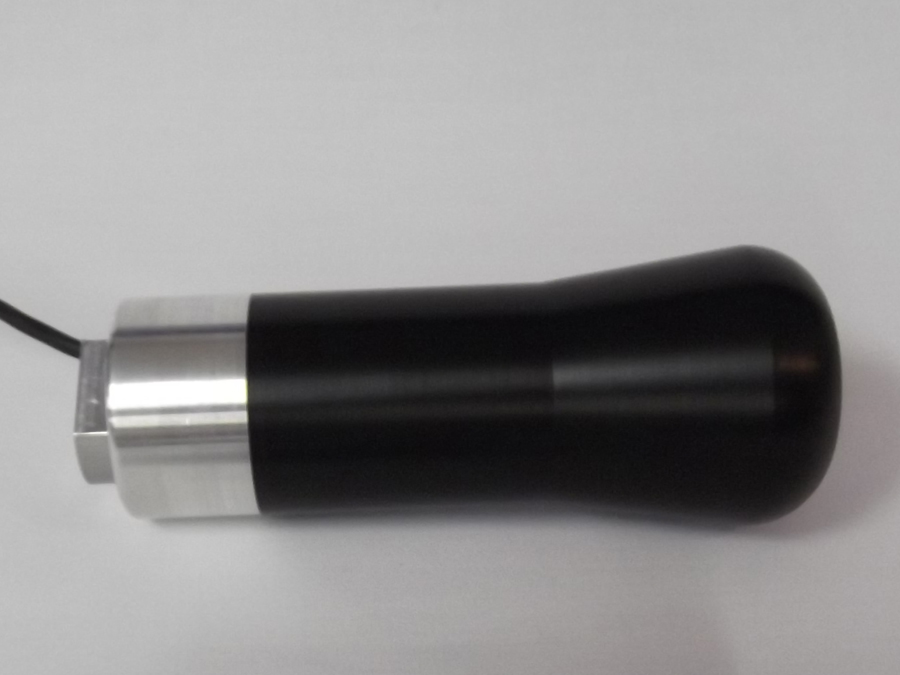

Lingenfelter Load Cell Shift Knob for LNC-TC1 Torque Cut Module, Corvette and Others

Lingenfelter does not offer this item any longer but we have a similar item from another manufacturerer. Please contact us for more information.

The Lingenfelter Load Cell Shift Knob for LNC-TC1 Torque Cut Module activation. The load cell functions by measuring the change in length of the resistor element inside the load cell which causes a change in output voltage across the load cell. At zero strain the voltage across the load cell should be 2.5 V. When load or strain is applied to the shifter the voltage will then become 2.5V +/- 2.0V. The maximum and minimum voltage across the load cell is therefore 4.5V and 0.5V in tension and compression. Depending on the application the shift knob will be used in you may need to modify your stock shifter lever to install the load cell.
Thread size M12x1.75
