TSP Velocity LS3 Angled Low Profile Induction Kit, Corvette, Camaro and others, CABLE Drive

Available Options:
Color: Select color
Fuel Rail Color: Select
Fuel Injectors: Select
MAP Sensor Extension: Optional	( + $12.00 )
Throttle Body Cable Bracket: Select:
MAP Sensor: Optional: GM 3 Bar	( + $34.00 )
Throttle Body: Select:

$560.00

Model: VL03 Manufacturers: Top Street Perf

Qty:

Reviews

Add to Wish List

Description

If you're swapping an LS into a muscle car, or upgrading the engine in your late model 'Vette, look no further. TSP's Velocity all-in-one induction kits have everything you need for air and fuel delivery - all designed for elite performance. The kit includes a fabricated aluminum sheet metal intake manifold, billet aluminum high-pressure fuel rails, and optional large-opening throttle body, high-flow fuel injectors, and 3 bar MAP sensor.

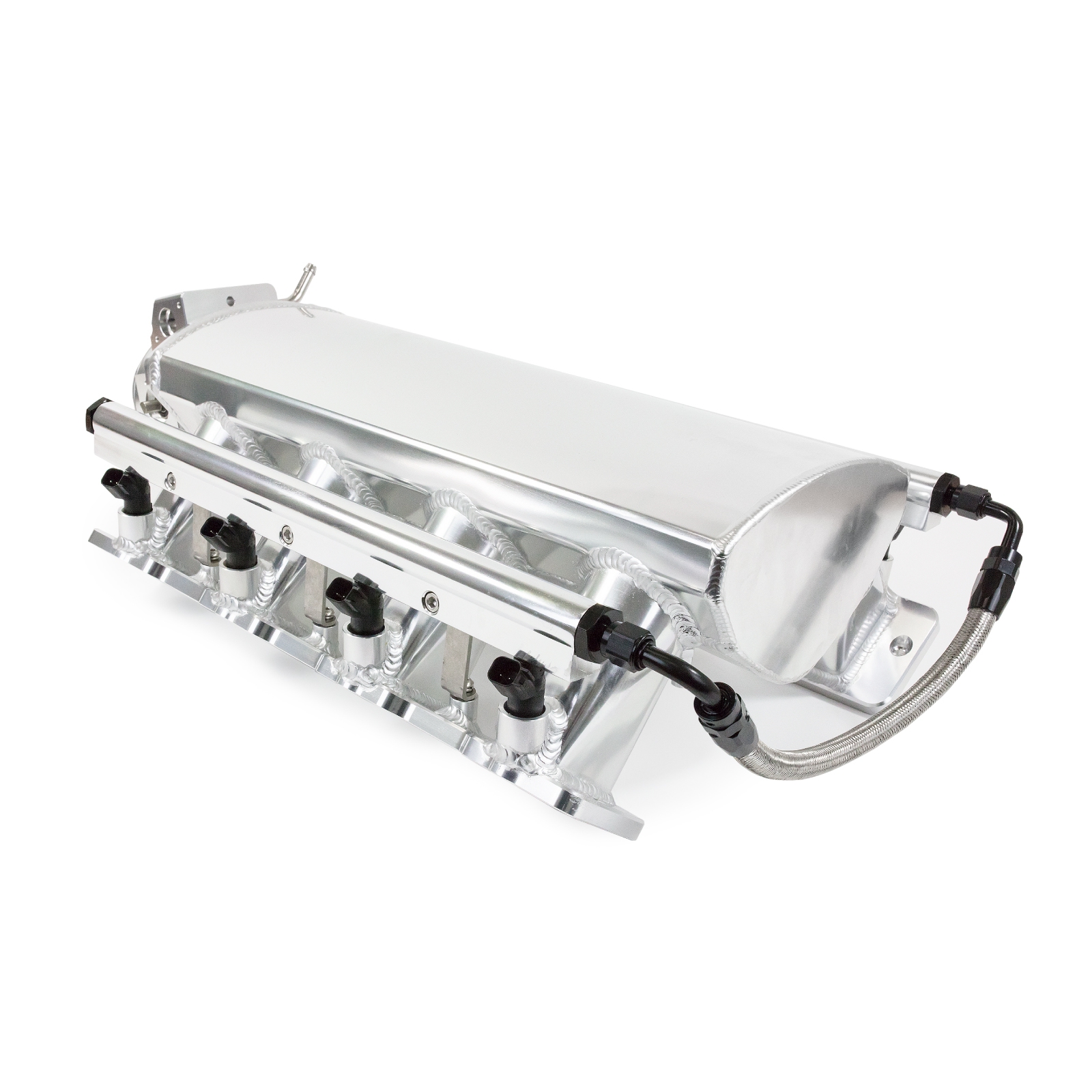

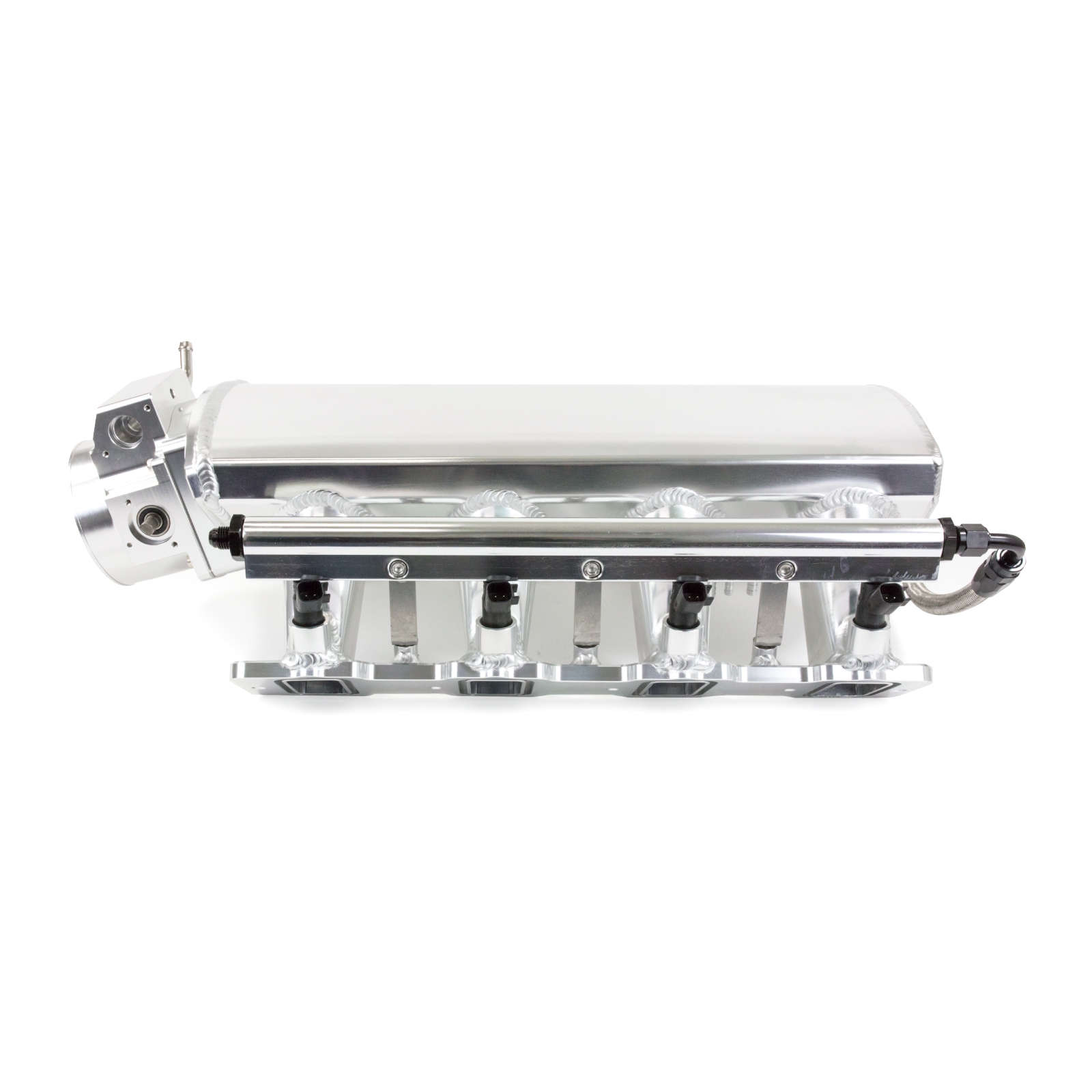

Intake Manifold

TSP's Velocity fabricated intake features a 102mm throttle body opening for maximum air flow. The runners are velocity stacked, allowing air to move more smoothly at high velocities. The manifold is constructed of 3.5mm thick T-6061 aluminum and is TIG welded to ensure consistent strength and performance. Individual port o-rings guarantee a good seal with the cylinder heads and throttle body.

Available in black and clear anodized.

Injection Style	Multi-port
Throttle Body Bore Size	102mm
Throttle Body Bolt Pattern	Standard OE 4-Bolt Pattern
Throttle Body Flange Angle	7°
Flange Material	T-6061 Billet Aluminum
Plenum Thickness	3.5mm
Plenum Material	T-6061 Sheet Aluminum
Vacuum Ports	NPT 1/8 x 3 and NPT 1/4 x 1
Overall Height	6 3/4"
Included	Port O-Rings and Hardware

Fuel Rails

With the custom design of our fabricated intake manifolds, you will need a set of our billet aluminum fuel rails. They have been designed to support high-pressure fuel systems in high horsepower applications and come complete with -8AN fittings, mounting hardware, and a durable, braided middle pipe.

Available in black and silver.

Injection Style	Multi-port
Fuel Rail Type	Custom TSP Design
Fittings	-8AN
Crossover Pipe Included	Yes
Fuel Rail Material	Billet Aluminum
Included	Fittings and Mounting Hardware

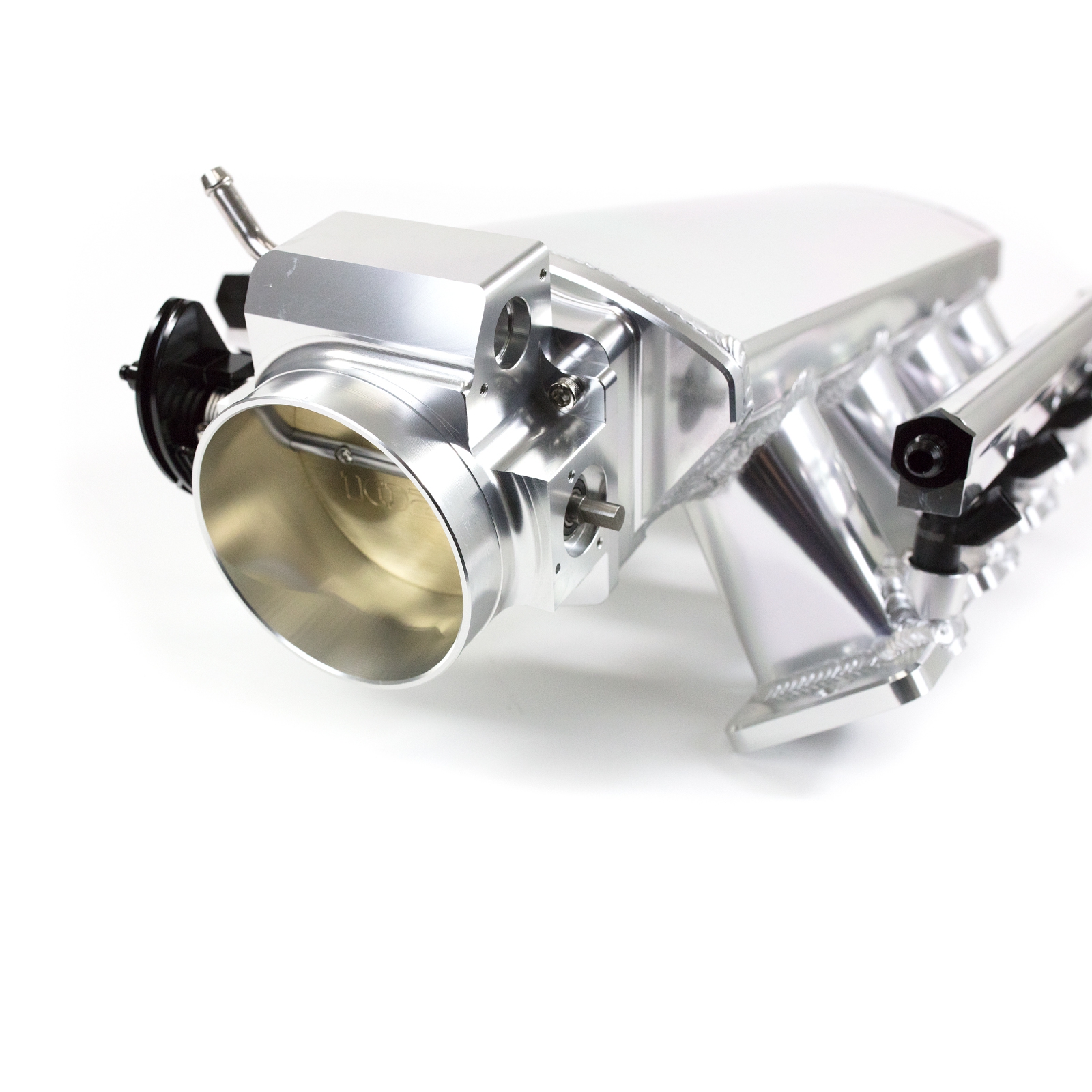

Throttle Body

Featuring a CNC-machined aluminum housing, this large throttle body provides maximum airflow for mid-to-high horsepower engines. Combined with a TSP Velocity intake manifold, this will give your street or strip car a cosmetic and performance boost guaranteed to turn heads.

Available in black and silver with 92mm and 102mm openings.

Throttle Style	Drive by Cable
Throttle Body Bolt Pattern	Standard OE 4-Bolt Pattern
Throttle Body Material	Billet Aluminum
Venturi Quantity	1
Idle Air Control Motor	GM #17113598
Idle Air Control Motor Included	No
Throttle Position Sensor	GM #17123852
Throttle Position Sensor Included	No
Included	Mounting Bolts

Injectors

TSP Velocity high-flow fuel injectors are made in the USA, assembled with top-quality parts and trusted techniques. They are guaranteed to deliver the needed amount of fuel with precision and reliability. The 81051 injector is designed to fit our LS3 and LS7 Velocity intakes and rails.

Available with flow rates of 52 and 80 lbs/hr.

IMPEDANCE	High
DRIVER TYPE	12V Saturated Circuit
INJECTOR PLUG STYLE	USCAR
O-RINGS INCLUDED	Yes
QUANTITY	Set of 8

Fitment

CHEVROLET SMALL BLOCK V8 GEN. III/IV (LS-BASED)

4.8 L / 293 in³ (L20, LY2)
5.3 L / 325 in³ (LC9, LH6, LH8, LMG, LY5)
6.0 L / 364 in³ (L76, L96, LFA, LY6)
6.2 L / 376 in³ (L92, L99, LS3, LSA)

NOTES

Fits LS-based engines with "rectangular" intake port shape only
Components may not be street legal in California, or states with comparable emission and modification laws.

Resources

Part Numbers

81003BK	Black LS3 TSP Velocity Intake Manifold
81003CA	Clear Anodized LS3 TSP Velocity Intake Manifold
81009BK	Black LS3 TSP Velocity Fuel Rails
81009SL	Silver LS3 TSP Velocity Fuel Rails
81012BK	Black 102mm TSP Velocity Throttle Body
81012SL	Machined 102mm TSP Velocity Throttle Body
81042BK	Black 92mm TSP Velocity Throttle Body
81042SL	Machined 92mm TSP Velocity Throttle Body
81013	TSP Velocity Throttle Cable Bracket
81051-52	52 lbs/hr (.550 cc/min) TSP Velocity Fuel Injectors
81051-80	80 lbs/hr (.850 cc/min) TSP Velocity Fuel Injectors

This product was added to our catalog on Thursday 10 January, 2019.
