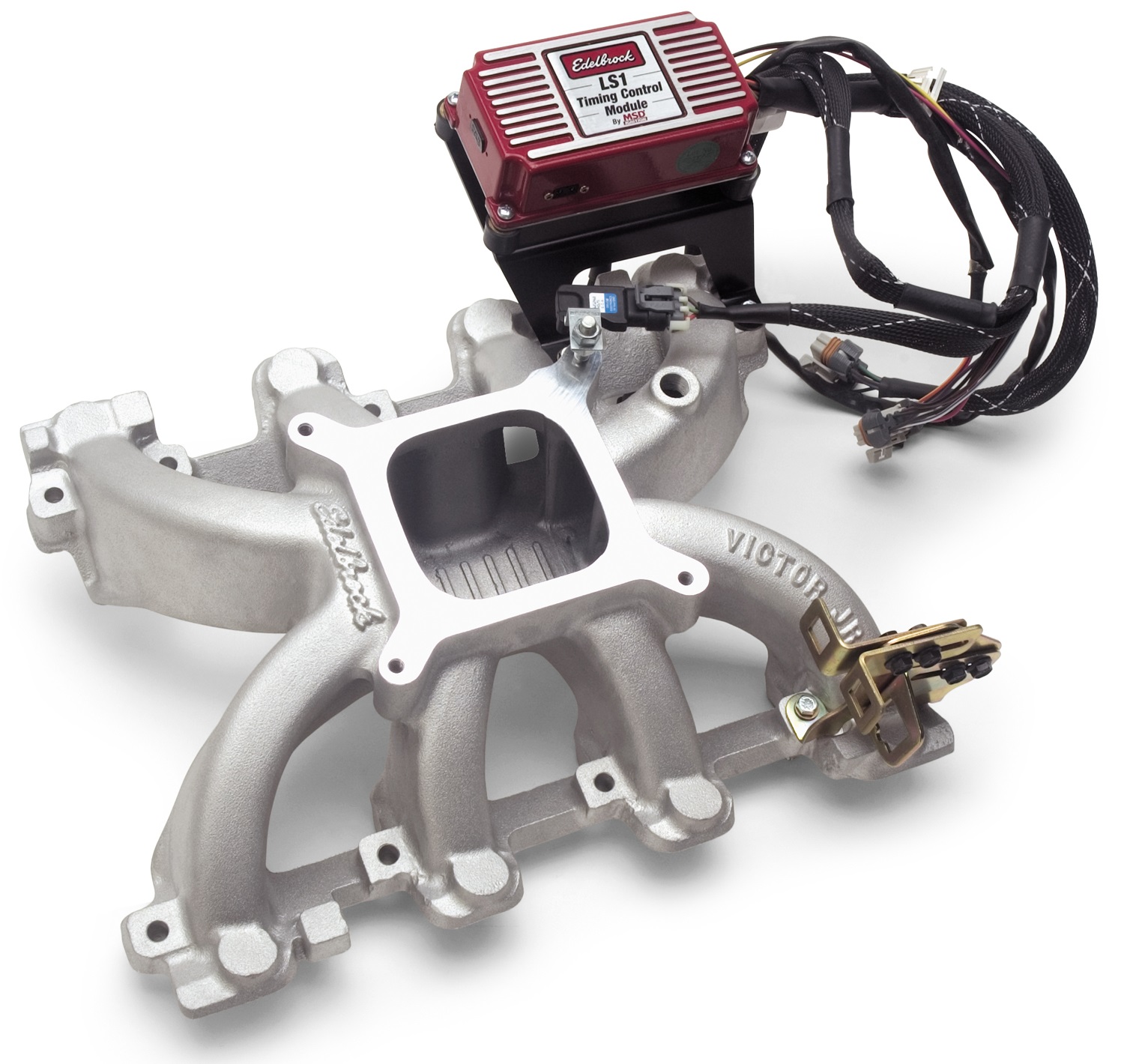

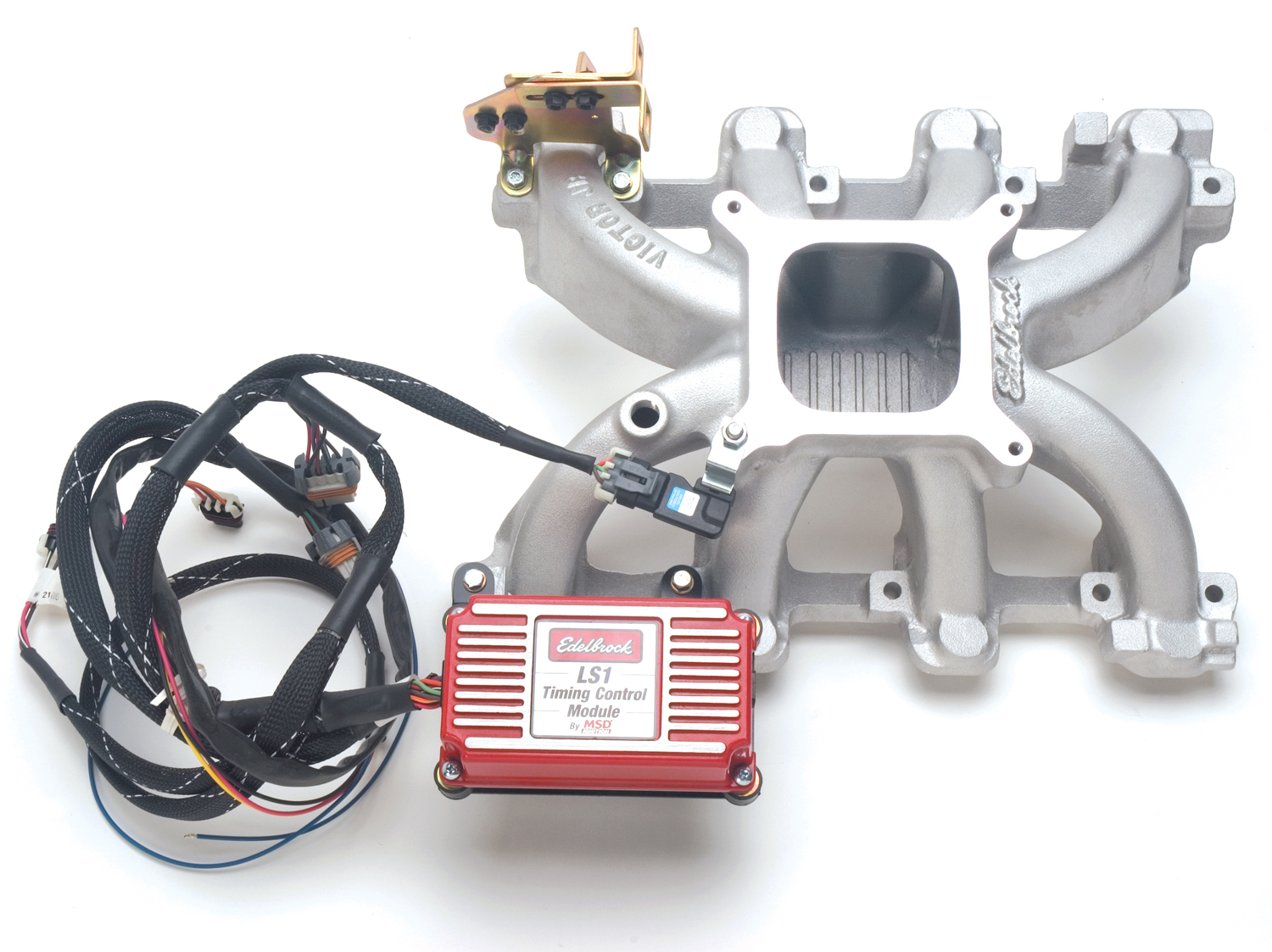

Edelbrock Manifold, LS1 Victor Jr, EFI to Carbureted conversion, Part# 2908
This high-rise single plane intake is capable of supporting up to 600 hp. The Victor Jr. LS1 accepts a square bore carburetor and includes an electronic timing module that picks up MAP, crank position, and cam position in order to drive the stock LS1 Coil-on-Plug ignition system. The module offers a choice of 6 built-in timing curves, each tailored for engine displacement, cam profiles, and fuel grades. The No.29087 (manifold only) can be used on LS2 applications when matched with MSD's No.6012 LS2 ignition controller (available through MSD Performance). Includes a throttle bracket designed to work with 700R-4, 200R-4 and Turbo 350 transmissions. Most applications will require hood modification. INSTALLATION NOTE: Uses LS1/LS6 style individual port o-ring seals. Crankshaft sleeve No.HP3795 and Flexplate No.HP4004 is recommended when using a TH350, TH400 or 700R4 on a LS1, these items are available through Hughes Performance retailers or you can call Hughes at 800-274-RACE. Manifold height: A-4.95in, B-4.95in, Carb pad height: 4.95in. Port exit dimensions: .98in x 2.74in. See EFI elbow applications.
Throttle Brkt Included for 700R-4/200R-4/Turbo 350
Installation Documentation: 2908290872809728457-CarburetedVictorJrSup.pdf
|
