JL AUDIO C5-525x: 5.25-inch (165 mm) Coaxial
Speaker System, C6 Corvette Rear Deck
Coaxial Speaker System: 5.25-inch (130 mm) Woofer,
0.75-inch (19 mm) Silk Dome Tweeter
The smoothness and transparency of a high-end silk
dome tweeter combines with top-flight woofer performance to create
a coaxial loudspeaker system with exceptional refinement and
dynamic capability.
The C5-525x system features 5.25-inch (130 mm)
woofers with die-cast alloy baskets and Kurt Müller cones and
suspensions. The woofer benefits from JL Audio's vast woofer design
experience and advanced modeling systems.

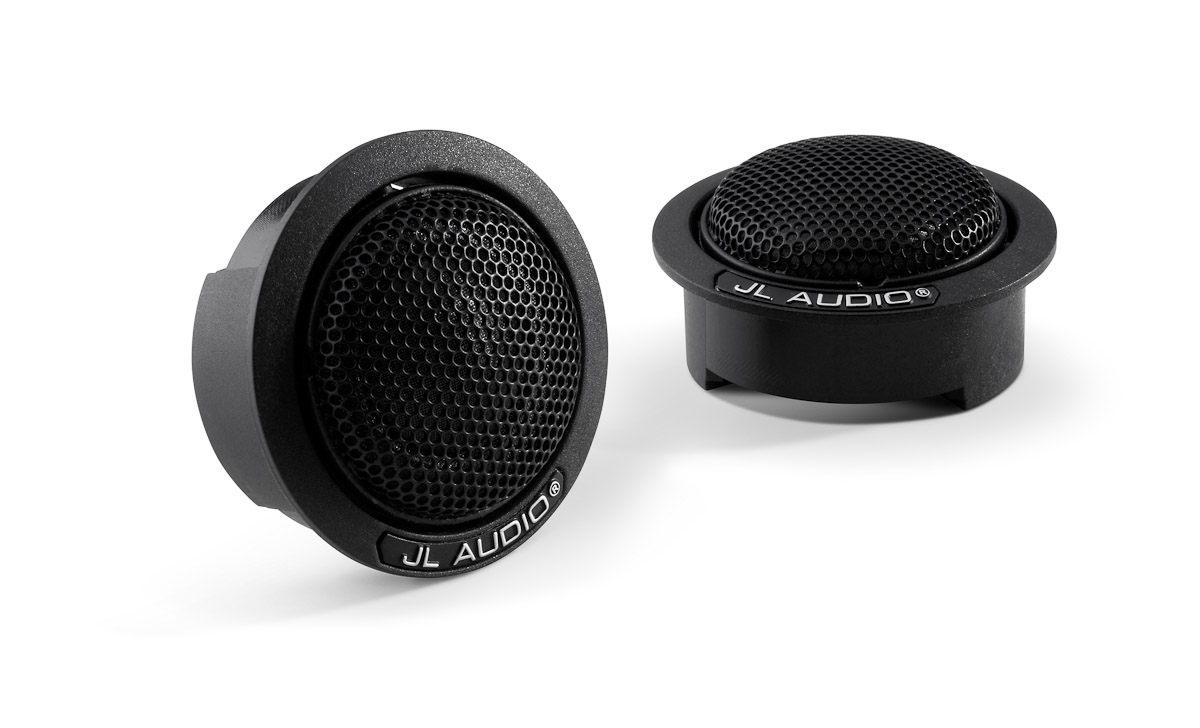

Tweeters are coaxially mounted and built with
0.75-inch silk dome diaphragms that deliver smooth, extended
response, on and off axis. The small size of the C5 tweeter
minimizes tweeter protrusion, allowing C5 coaxials to easily fit
behind most factory speaker grilles.

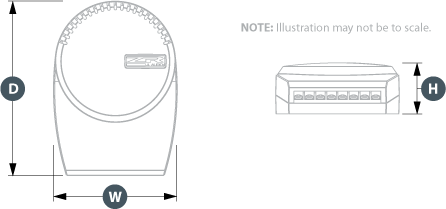

C5 crossover networks are compact and built with
premium component parts, including Mylar® capacitors and segmented
air-core inductors. Four levels of tweeter attenuation are
provided, as well as three levels of mid-range presence adjustment,
for twelve possible voicing combinations!
Speaker grilles are included, each consisting of a
black grille tray and a black steel mesh grille with an
electroformed JL Audio logo.
Sonic character: Smooth and
balanced
Made in Germany, Sold as a pair.
Continuous Power Handling (RMS) 75 W
Peak Music Power 225 W
Recommended RMS Amplifier Power (per Ch.) 25 - 150 W
System Efficiency 88.5 dB @ 1 W / 1 m
System Nominal Impedance 4 Ω
System Frequency Response 53 Hz - 25 KHz ± 3
dB

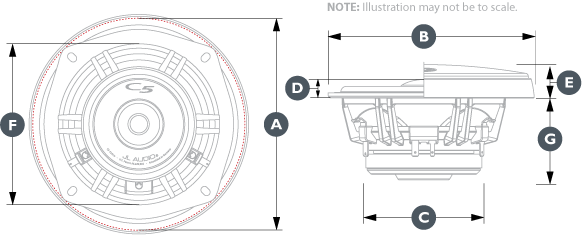

Frame Outer Diameter* (A) 5.80 in / 147
mm
Grille Tray Outer Diameter** (B) 6.02 in / 153 mm
Magnet Outer Diameter (C) 3.15 in / 80 mm
Frontal Coaxial Tweeter Protrusion*** (D) 0.54 in / 14 mm
Frontal Grille Protrusion**** (E) 0.92 in / 23 mm
Mounting Hole Diameter (F) 4.48 in / 114 mm
Mounting Depth (G) 2.27 in / 58 mm
|
