Corner Sub Box NVX Powered 500W RMS BOOST Kit for 2005-2013 Chevrolet Corvette C6 Coupe

$719.92

Model: PBK-GMVETC6-NSW104v2 Manufacturers: NVX

Qty:

Reviews

Add to Wish List

Description

Complete B.O.O.S.T. Series Powered Bass Kit for 2006-2013 Chevrolet Corvette C6 Coupe With 500w AMP, and Line out harness and Power/Audio wiring

Item highlights

• 2006-2013 Chevrolet Corvette C6 Coupe B.O.O.S.T. Series Loaded Subwoofer Enclosure
• 100% Copper, 2-Chan. True Spec 4 Gauge Amp Installation Kit w/RCA Interconnect
• 2 Channel Line Out Converter with AccuBASS
• VADM1 500W RMS V-Series Micro Class-D 1-Ohm Stable Monoblock Amplifier

At NVX feels that an amazing car deserves an equally thrilling sound system. The C6 Chevrolet Covette Coupe is certainly no exception to our line of thinking, and that is why we are thrilled to introduce the B.O.O.S.T. Series 2006-13 Chevolet Corvette Coupe Powered Bass Package. Our C6 Corvette bass package features our BE-GM-VETC6-NSW104v2 loaded enclosure, VADM1 Monoblock Amplifier, XKIT42 amp kit and our Audio Control LC2i premium line-out converter to bring your system to life. Don’t leave yourself with a factory sound system when you don’t have to!

Painstakingly designed by our in-house engineers, the BE-GM-VETC6-NSW104v2 enclosure is made from hand-laid fiberglass to create a lightweight, durable enclosure that is matched closely to your vehicles interior. It also features a Terminal Cup with spring loaded, Chrome-Plated binding posts for optimal connection and ease of installation. Built-in to the enclosure is our high-technology NVX NSW 104 v2 subwoofer driver, this B.O.O.S.T. bass enclosure tucks into the corner of the trunk area without taking up valuable cargo space. The NSW 104v2's long excursion capability and power handling allow it to deliver acoustically accurate and extended low frequency output at any listening level.

Audio Control LC2i 2-Channel Line Output Converter

The Audio Control LC2i 2-channel line output converter provides the perfect solution to connect your new sound system to your factory Corvette stereo system. This amazing item accepts two channels of speaker-level signal from an amplifier or source unit and converts them into a high-quality, low-noise pre-amp signal. The LC2i will allow you to use your OEM factory installed source unit and give you the ability to add an amazing, superior after-market amplifier and processor.

NVX BOOST Kit for 2006-2013 Chevrolet Corvette C6 Coupe (BE-GM-VETC6-NSW104v2)

2006-2013 Chevrolet Corvette Loaded Enclosure NVX B.O.O.S.T. System Upgrade (For Years: 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013)
Quantity: 1

General Features:

300W Single 10" Dual 4-ohm Sealed Subwoofer Enclosure with Loaded with NVX NSW 104 v2 Subwoofer
Power Handling:

RMS Range: 250-350W

Final Impedance: 2 ohms
Preloaded with single 10" NSW 104 V2 Series Subwoofer
Enclosure Dimensions: CUSTOM (Vehicle Specific)
Authorized Internet Dealer
1-year Manufacturer's Warranty

Subwoofer Features:

Ultra-Light Non Pressed Paper Cone
Custom Blended Foam Surround
2” High Temperature Aluminum Voice Coil
Frequency Response: 20-200 Hz
Sensitivity: 89 dB

Enclosure Features:

Compatible with 2006-2013 Chevrolet Corvette
Enclosure Constructed of hand-laid fiberglass
Painted and carpeted Finish
Subwoofer Mounting Depth: 4-1/8"

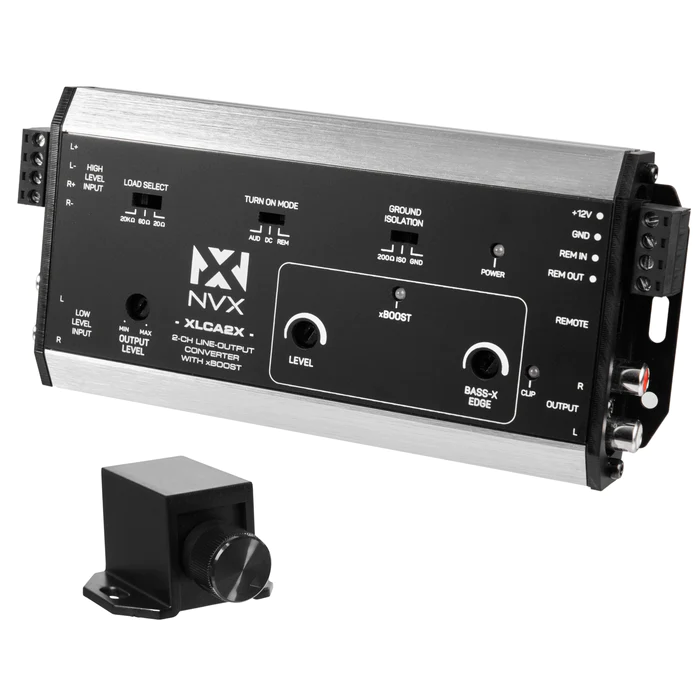

NVX XLCA2

2-Channel Line Out Converter with xBOOST Technology and Includes Remote Bass Knob (3-year warranty)
Quantity: 1
Product Details:
- 2-channel line out converter
- Speaker Level Input Accepts Up To 400 Watts RMS
- Bass Enhancer And Bass Compensation
- xBOOST Technology
- Selectable Auto On optimizes efficiency by only utilizing XLCA2 when the vehicle is in use
- 9.5 Volt Pre-Out
- 12 Volt Trigger Out
- Dual Amplifier Outputs
- Level Matching Controls
- Dash Remote Level Control Included
- Dimensions: 5-1/2"W x 3-3/4"L x 1-1/4"H
- Authorized Internet Dealer
- 3 Year Manufacturer's Warranty
Check out the NVX XLCA2 Owner's Manual
NVX VADM1

500W RMS Class D Monoblock Car/Marine/Powersports Amplifier with Bass Remote
Quantity: 1
Product Details:
- Marine Certified 1-Channel Class D Car Amplifier
- Peak Power Rating: 1000 Watts
- RMS Power Rating:
- Cutting edge Micro Class D technology allows amplifier to be extremely compact
- LED power (blue) and protect (red) indicators
- Conformal Coated Marine grade circuit board
- Balanced Differential Inputs, to eliminate noise picked up by signal cables
- Speaker-level (high-level) inputs
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Input sensitivity: 0.2V-5V
- Variable low-pass filter (50-250 Hz)
- Bass Boost: 0 - +18dB boost @ 45Hz
- Frequency Range : 20 - 20KHz
- Total Harmonic Distortion: <0.3%
- CEA-2006 compliant amplifier
- Dimensions: 6.8"L x 3.3"W x 1.5"H
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Check out the NVX VADM Owner's Manual
NVX XKIT82

100% Copper, 2-Channel True Spec 8 Gauge Amplifier Installation Kit w/ RCA Interconnect and 40 ft Speaker Cable
Quantity: 1
General Features:
- 8 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
- Designed specifically for car audio systems up to 600 watts RMS
- Premium power and ground wire provides optimal power transfer
- Made from silver-tinned 100% virgin copper for a pure uninterrupted transfer of power and signal
- Audio Interconnect RCA cables are made with twisted-pair technology for noise reduction
- Solid Brass and satin-chromed ANL/Mini-ANL Fuse holder offers ideal protection for high powered systems
- True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size
- Strand Count: 735
- BC-5W2 Compliant
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Kit includes:
1. 20 ft. (6.1 meters) Frosted Blue 8 gauge power wire with seamless crimp ring terminal
2. 3 ft. (.91 meters) Frosted Gray 8 gauge ground wire with seamless crimp ring terminal
3. 20 ft. (6.1 meters) Clear 18 gauge remote lead wire
4. 40 ft. (12.2 meters) Frosted Gray/Blue 16 gauge speaker wire
5. One 16 ft. (5 meters) 2-channel twisted construction RCA interconnect Cable (NVX XIV25)
6. One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
7. One 5/16" black rubber firewall grommet
8. Two 8 gauge spade terminals
9. Two black 16 gauge nickel-plated spade lugs
10. Three blue 16 gauge nickel-plated spade lugs
11. One black 18 gauge spade terminal
12. Two 18 gauge red butt connector
13. Ten 4" black zip ties
NVX XLCA2

2-Channel Line Out Converter with xBOOST Technology and Includes Remote Bass Knob (3-year warranty)
Quantity: 1
Product Details:

2-channel line out converter

Speaker Level Input Accepts Up To 400 Watts RMS

Bass Enhancer And Bass Compensation

xBOOST Technology

Selectable Auto On optimizes efficiency by only utilizing XLCA2 when the vehicle is in use

9.5 Volt Pre-Out

12 Volt Trigger Out

Dual Amplifier Outputs

Level Matching Controls

Dash Remote Level Control Included

Dimensions: 5-1/2"W x 3-3/4"L x 1-1/4"H

Authorized Internet Dealer

3 Year Manufacturer's Warranty

Check out the NVX XLCA2 Owner's Manual
NVX VADM1

500W RMS Class D Monoblock Car/Marine/Powersports Amplifier with Bass Remote
Quantity: 1
Product Details:

Marine Certified 1-Channel Class D Car Amplifier

Peak Power Rating: 1000 Watts

RMS Power Rating:

4 ohms: 180-1 watts x 1 chan.

2 ohms: 320-1 watts x 1 chan.

1 ohm: 500-1 watts x 1 chan.

Cutting edge Micro Class D technology allows amplifier to be extremely compact

LED power (blue) and protect (red) indicators

Conformal Coated Marine grade circuit board

Balanced Differential Inputs, to eliminate noise picked up by signal cables

Speaker-level (high-level) inputs

3-way protection circuitry (thermal, overload, and speaker short protection)

Input sensitivity: 0.2V-5V

Variable low-pass filter (50-250 Hz)

Bass Boost: 0 - +18dB boost @ 45Hz

Frequency Range : 20 - 20KHz

Total Harmonic Distortion: <0.3%

CEA-2006 compliant amplifier

Dimensions: 6.8"L x 3.3"W x 1.5"H

Authorized Internet Dealer

1-year Manufacturer's Warranty

Check out the NVX VADM Owner's Manual
NVX XKIT82

100% Copper, 2-Channel True Spec 8 Gauge Amplifier Installation Kit w/ RCA Interconnect and 40 ft Speaker Cable
Quantity: 1
General Features:

8 Gauge 2-Channel X-Series Complete Amplifier Installation Kit

Designed specifically for car audio systems up to 600 watts RMS

Premium power and ground wire provides optimal power transfer

Made from silver-tinned 100% virgin copper for a pure uninterrupted transfer of power and signal

Audio Interconnect RCA cables are made with twisted-pair technology for noise reduction

Solid Brass and satin-chromed ANL/Mini-ANL Fuse holder offers ideal protection for high powered systems

True-to-Gauge cables/wires meet or exceed the industry standard of copper required for the gauge size

Strand Count: 735

BC-5W2 Compliant

Authorized Internet Dealer

1-year Manufacturer's Warranty

Kit includes:

20 ft. (6.1 meters) Frosted Blue 8 gauge power wire with seamless crimp ring terminal

3 ft. (.91 meters) Frosted Gray 8 gauge ground wire with seamless crimp ring terminal

20 ft. (6.1 meters) Clear 18 gauge remote lead wire

40 ft. (12.2 meters) Frosted Gray/Blue 16 gauge speaker wire

One 16 ft. (5 meters) 2-channel twisted construction RCA interconnect Cable (NVX XIV25)

One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse

One 5/16" black rubber firewall grommet

Two 8 gauge spade terminals

Two black 16 gauge nickel-plated spade lugs

Three blue 16 gauge nickel-plated spade lugs

One black 18 gauge spade terminal

Two 18 gauge red butt connector

Ten 4" black zip ties

FEATURES & SPECS

Subwoofer Specifications

Subwoofer Size

10"

Subwoofer Design

Round / Circle

Voice Coil(s)

Dual

Impedance (Per Voice Coil)

4 ohms

RMS Power Handling

350 watts

Total RMS Power Handling

350 watts

Peak Power Handling

700 watts

Total Peak Power Handling

700 watts

Woofer Surround

Foam

Woofer Composition

Non-Pressed Paper

Sensitivity

84.8 dB

Frequency Response

20 - 200 Hz

Xmax (millimeters)

8.1 mm

Enclosure Specifications

Final Wired Impedance

2 ohms

Number of Subs/Speakers

Box Style/Shape

Square/Rectangle

Height

1-1/4"

Width

5-1/2"

Depth

3-3/4"

Wood Thickness

3/4"

Number of Terminals

Terminal Type

Spring posts

Box Exterior Color

Black

Box Finish

Fiberglass

Box Type

Sealed

Subwoofer Amplifier Power Specifications

RMS Power @ 1 ohm

500 watts x 1 channels

RMS Power @ 2 ohms

320 watts x 1 channels

RMS Power @ 4 ohms

180 watts x 1 channels

Warranty and Return Policy

Parts Warranty Duration

1 year

Labor Warranty Duration

1 year

Warranty Provider

Manufacturer
