5th Gen 10-15 Camaro Separate Clutch Fluid Reservoir Kit

Includes:

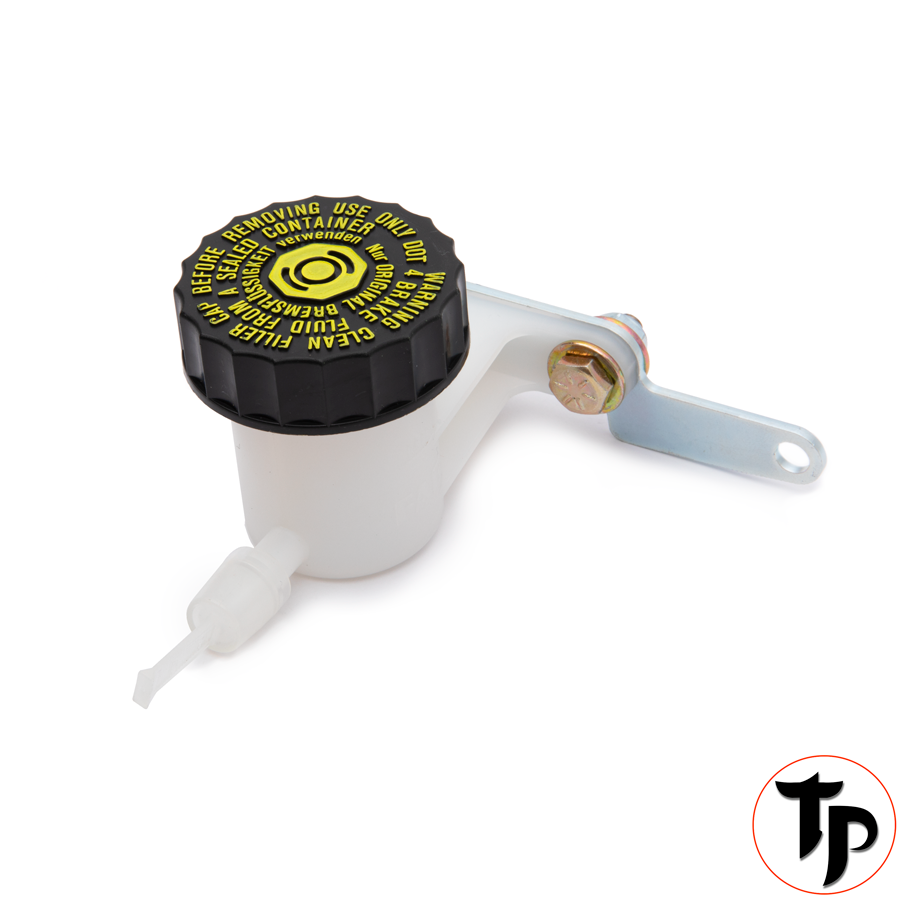

• Reservoir

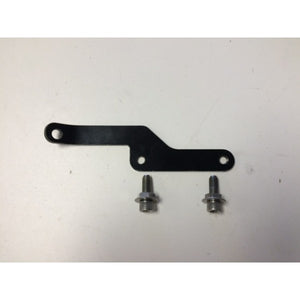

• Mounting bracket

• New EPDM hose 15" long
• Hose clamps (2)
• EPDM Rubber cap (1)
• Mounting bolts

Install Instructions:

Before beginning remember that brake fluid will eat paint, so be very careful not to get any on the painted surfaces.

1.) Place a suitable container under the master cylinder and remove the clutch hose from the master cylinder and install cap onto the fitting.

2.) Remove the clutch hose from the firewall connection using a needle nose pliers.

3.) Install the new hose onto the firewall connection and secure with supplied clamp.

4.) Remove forward screw on master cylinder reservoir to master cylinder connection point.  Install bracket, using the removed screw onto this point.

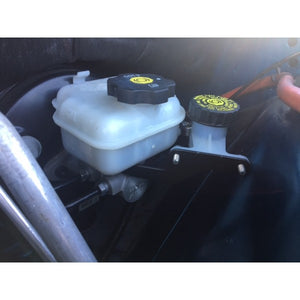

5.) Secure clutch reservoir to the new bracket using the included hardware.

6.) Attach hose to clutch reservoir

7.) Fill clutch reservoir slowly, you may get a few air bubbles as the fluid fills the hose. Fill to appropriate line and install cap.

Note: No bleeding should be required as long as the clutch pedal was not touched during the install.
