Chevrolet Corvette C7 Z06 LT4 K&N Air Intake System, Carbon Fiber, +50.71 HP @ 5340 RPM

Chevrolet Corvette C7 Z06 LT4 K&N Air Intake System, +50.71 HP @ 5340 RPM

Guaranteed to Increase Horsepower
Designed to improve throttle response and engine sound
Lasts up to 100,000 miles before service is required (depending on driving conditions)
Replaces entire factory air intake system
Ultra-lightweight carbon fiber intake tube
Easy to install, usually in 90 minutes or less
Washable and reusable lifetime air filter
K&N Million Mile Limited Warranty

The K&N 63-3090 Air Intake fits some Chevrolet Corvette Z06 models. See vehicle applications link for details.

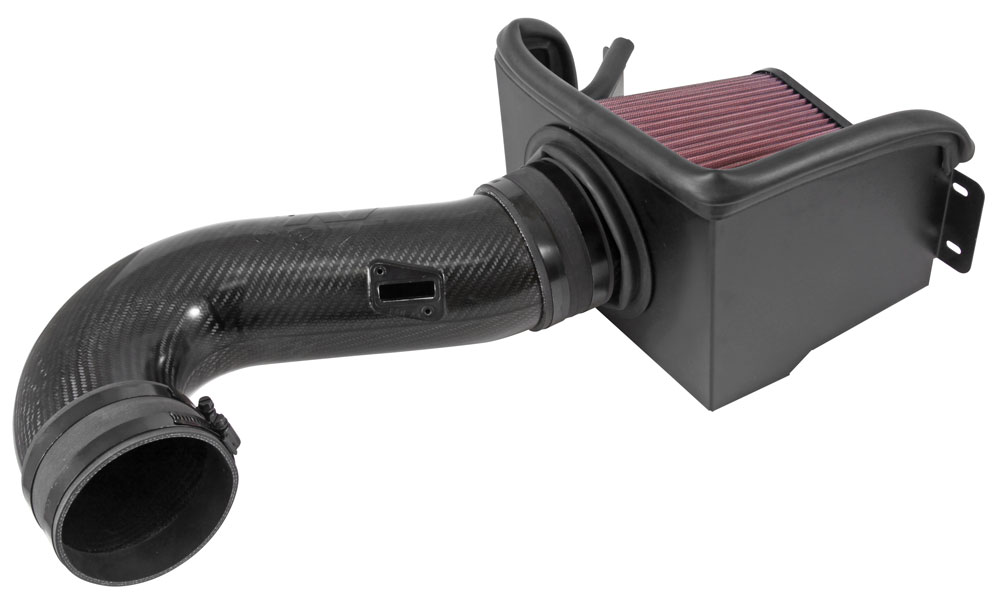

The K&N 63-3090 AirCharger air intake system replaces the restrictive factory air filter and air intake housing on specific Chevrolet Corvette Z06 models. K&N air intakes are designed to dramatically reduce air intake restriction as well as smooth and straighten air flow. This allows your engine to inhale a larger amount of air than the factory air filter assembly. More air means more usable power and acceleration throughout the engine’s RPM range. The air intake comes with a carbon fiber topped K&N high-flow air filter and a heat shield that installs into the original air box space. Air is directed through an ultra-lightweight carbon fiber intake tube into the engine’s throttle body for a guaranteed power gain. The tube accommodates the factory mass air sensor and crank case vent hose. The oversized tapered-oval shaped air filter can be used for up to 100,000 miles before servicing is needed depending on driving conditions. This air intake is relatively easy to install, usually in 90 minutes or less using your vehicle’s existing factory mounting points with commonly available tools.

Available Information

  Installation Instruction Sheet

  63-3090 Vehicle Applications

  Dyno Chart - 2015 Chevrolet Corvette 6.2L - 50.71HP Increase

  News Story - 2015-2018 Supercharged Corvette Z06 Gets Huge Boost With Carbon Fiber K&N Intake



Product Specifications
Estimated Horsepower Gain 50.71 HP @ 5340 RPM
Air Filter Color Red
Air Filter Height 7 in (178 mm)
Air Filter Material Cotton Gauze
Air Filter Outlet Shape Round
California Restricted Not legal for sale or use in California
Clamp Material Stainless Steel
Clamp Style Spring
Clamps Included 9
Couplers Included 2
Intake Pipe Color / Finish None
Intake Pipe Material Carbon Fiber
Product Box Height 12.5 in (318 mm)
Product Box Length 18.25 in (464 mm)
Product Box Width 18.25 in (464 mm)
Product Style 63 Series Aircharger Kits
Replacement Filter RP-5285
Street Legal In All US States No
TUV Approved (Europe) No
Weight 10.9 lb (4.9 kg)
Horsepower gains based on similar vehicle dynamometer test. Results will vary.
