C6 Corvette Dewitts Direct Fit Aluminum Radiator With Z51, Includes Both Oil and Trans Coolers

Available Options:
Radiator Options: Select

$1,039.99

Model: 1139105B Manufacturers: DeWitts

Qty:

Reviews

Add to Wish List

Description

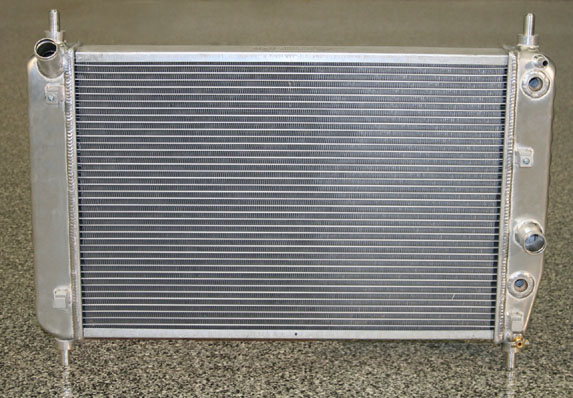

C6 Corvette Dewitts Direct Fit Aluminum Radiator, All Automatic Models

Model: 1139105A

This Direct Fit radiator features two rows of 1" tubes, which doubles the cooling capacity of a factory single row. Our exclusive "press formed" end tanks are hand tig welded by expert craftsman, eliminating the factory plastic tanks. This radiator includes the correct factory type "quick connect" fittings for the transmission oil connections. 2005-2013. All Z06 & C6 Automatic NOTE: Excludes 2012 spl Z07

Engine runs 20-40 degrees cooler. Whether you performance drive your C6 or cruise it, keep its coolant temp in check with this direct fit, high capacity aluminum radiator. It features a cast aluminum filler neck, extra strong tanks and advanced core technology. Delivering more durable and cooler operation over the stock radiator.

DeWitts Radiator Application Guide:

32-1139105M (Pro Series Direct Fit®, natural finish, dual 1-inch core, no cooler)
Base model C6 with manual transmission (non-Z51 models)

32-1139105A (Pro Series Direct Fit®, natural finish, dual 1-inch core, TOC)

All C6 Z06 models (Except 2012 model year with Z07 option)

All C6 with automatic transmission

All dry sump engine models (Grand Sport, Z06, ZR1)

32-1139105B (Pro Series Direct Fit®, natural finish, dual 1-inch core, EOC, TOC)

2005-2006 with Z51 option

2007-2009 wet sump engines

32-1139105E (Pro Series Direct Fit®, natural finish, dual 1-inch core, EOC)

Includes 7-plate internal engine oil cooler for C6 models that didn’t have an engine oil cooler from the factory

32-1139109Z (Pro Series Direct Fit®, natural finish, dual 1-inch core, ZR1 package)

2009-2013 with ZR1 option

2012 Z06 with special Z07 option

32-1139105Z (Pro Series Direct Fit®, natural finish, dual 1-inch core, oil cooler coolant return fitting)

2013 Corvette Z06, Z51, and Grand Sports with engine-mounted cooler

Note:
EOC: Engine Oil Cooler
TOC: Transmission Oil Cooler (used in Z06 models for differential cooler)

Model: SP463

Spals dual fan package boosts air flow up 40% from stock. This fan package only fits our Direct Fit radiators. Note: Factory wiring will need to be cut and spliced in order for the factory ECM to operate the fans.
