A&A Corvette 1997-2013 C5, C6 and, Grand Sport, Z06 Corvette V3 Secondary Belt Drive System, WET Sump

Available Options:
Corvette Model: Corvette Model
10 Rib Balancer: 10 Rib Balancer	( + $300.00 )
New GM Performance C6 Steel Powe: New GM Performance C6 Steel Power Steering Pulley	( + $49.00 )
New Modified Alternator Bracket: New Modified Alternator Bracket	( + $150.00 )

$1,599.00

Model: AASBDSC5C6W3 Manufacturers: A&A Corvette

Qty:

Reviews

Add to Wish List

Description

A&A Corvette 1997-2013 C5, C6 and, Grand Sport, Z06 Corvette Secondary Belt Drive System, NEW V3 System

Fits C5 and C6 Corvette with Wet Sump

10 Rib Balancer ($300.00)
New Modified Alternator Bracket ($150.00)

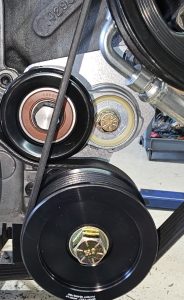

Our updated twin tensioner design for 2023 is much easier to install. We now have dual spring tensioners that automatically compensate for belt stretch. Belt squeal and slip are now a thing of the past. The lower tensioner has a locking pin, much like our famous billet tensioner used on our supercharger brackets. You literally slip the belt on, pull the locking pin, and your belt tension is set!

We’ve also changed the transfer pulley to a triple bearing 3 1/2" GRIPTEC pulley. The larger diameter slows the bearing speed for longer life while adding more surface area for belt traction. The GRIPTEC surface preparation further enhances traction.

The A&A Secondary Drive is unique in that it does NOT drive the accessories via the air conditioning belt like other systems. The A/C belt remains untouched. The accessory drive shaft pulley is driven by its own dedicated belt. This allows full belt wrap around the crankshaft pulley as well as the accessory drive shaft pulley and the ability to tension this belt separately. This eliminates accessory belt slip that plagues other systems. Our system also utilizes a spring tensioner on each belt which always provides proper belt wrap and tension.

Design testing showed the torque needed to slip the accessory drive shaft belt was over 4 times that of designs that use the A/C belt to drive everything. This eliminates voltage loss at high RPM from slipping, as well as belt squeal in slow corners with the A/C on.
A properly designed serpentine system is inherently more reliable than a cog system. Cog belts tend to drift from side to side with nothing to guide them. Serpentine belts do not have this problem.

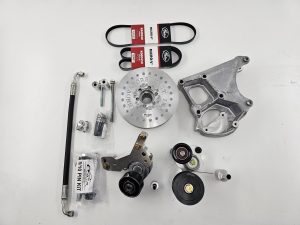

This kit INCLUDES our PROPRIETARY 8 RIB SFI approved 10% OVERDRIVE BALANCER, all belts, hoses, pulleys and tensioners needed. (Will NOT work with stock, or standard Innovators West or ATI balancer)

Using our Secondary Drive allows the use of a much shorter belt to drive the supercharger which eliminates stretch and belt whip. This is the ultimate belt drive system for street driven C5 and C6 Corvettes as well as dedicated race cars with or without A/C.

Requires modification of the stock alternator/power steering bracket. (Or add our brand new OEM modified bracket at checkout.)

PRICE INCLUDES OUR PROPRIETARY 8 RIB OVERDRIVE SFI SPEC BALANCER.

This product was added to our catalog on Tuesday 08 May, 2018.

Points & Rewards Information

Points Credit : 1,599 points Currently valued at $47.97 Write a Review and earn $1.5 worth of points. Please check the Reward Point Program FAQ for more information.

Product 49 of 71 in category C5 Corvette Superchargers
