RB Big Brake Kit (4-Piston, Slotted) - C6/Z06 REAR 2005-2013 Corvette

Learn why RB Aluminum caliper kits are different from others.

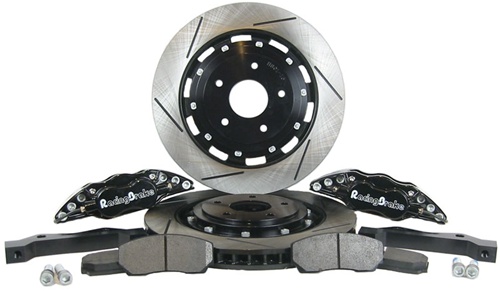

• 2 ea. Two-piece center-mount rotors
• 2 ea. 4-Piston calipers (RB430)
• 2 ea. 7075-T6 High strength aluminum adapters and hardware
• 1 Set of RB ET300 brake pads (PDS110-33)

Fitment Diagram
Determine if this brake kit will fit your wheels.
View diagram.

Installation note:

Trim the back plate edge approximately 2-3mm (0.1") to avoid interference with the rotor.

Two-piece rotor:

• True floating two-piece rotors with patented center-mount design.
• Direct bolt on, easy to install.
• Alloyed iron formula adds strength and heat resistance. Heat treating further improves rotor performance for a more uniform and stabilized microstructure.
• EDP Coating w/cross cut grinding on friction surface.

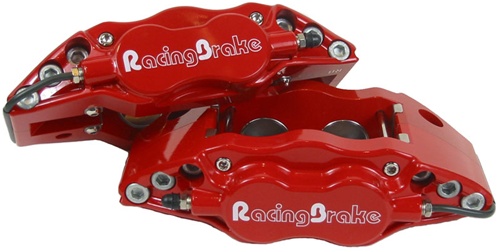

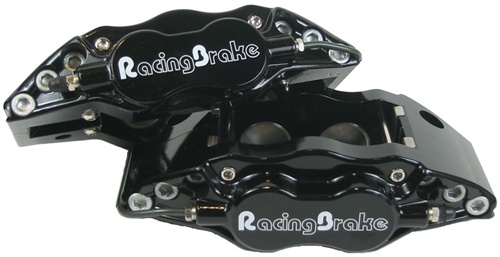

4-Piston Caliper:

• Piston Material: Made of stainless steel instead of aluminum like most common material that can substantially reduce the heat transfer (approx 1/10 of aluminum) from the pad to brake fluid.
• Double Sealing System: Our uniquely designed double seals in addition to primary hydraulic seal, the dust seal acts as a secondary back up seal (in case primary seal fail) in addition to its normal dust sealing.
• Caliper Body: Re-shaped for tougher stiffness and appealing look.
• Hardware: Brake pad pins and banjo connections were re-designed for easier installation and pad replacement.
• Surface Coating: Liquid paint is used, which is more resistant to chipping than powder coating.
• Light Weight: Weighs only 5 lbs. (compared to old CP4 4.75 lbs.), yet this new RB4000 calipers shall offer extended service life before any rebuilt is required.

Rotor Design:

Our unique and patent pending rotor designs make our discs cooler and last longer.

1. Convergent vane design

   The cooling vanes are of a convergent nozzle design, which increases airflow and turbulence and makes discs cooler. (Illustration #1)








2. Center-mount design

   The center-mount flanges for hat mounting to the rotor ring have several benefits. (Illustration #2)
• It allows the ring to be used on either side of the vehicle simply by mounting the hat on either side of the ring (unidirectional).
• The stress load transferred from the ring to the hat is balanced.
• Air inlets are widely open to both inboard and outboard sides of the rotor. More air suctions and even temperature on both sides of the disc surface.
• Heat transfer from the disc surfaces to the hat is even and minimized by increasing the flange length and the airflow around the flanges.
• Mounting flanges are on both friction surfaces ultimately provides excellent heat balance.



3. True floating design

   Exclusive full floating design with 10.9 grade alloyed hardware. Hardware is DACRO coated and crimp locking. DACRO is highly corrosion resistant and provides a film for easier movement between the hat and rotor ring as disc expands and contracts and the crimp design provides positive engagement without rattling or torque loss at temperature.
