C7 Corvette 14-19 Wilwood SX6R Front Big Brake Kit w/15" SRP Drilled RotorsWilwo

C7 Corvette 14-19 Wilwood SX6R Front Big Brake Kit w/15

$4,248.99

Model: DB-1262 Manufacturers: ZIP

Qty:

Reviews

Add to Wish List

Description

Wilwood's forged aluminum SXR calipers and 15" diameter Spec 37 curved vane Iron two-piece rotors are combined to provide high capacity braking with large diameter rotors for extreme duty and race vehicles. Available with SRP drilled and slotted performance rotors or GT competition series rotors with face slots only. Each kit includes all necessary hardware with DOT approved stainless steel braided flex lines, and a detailed instruction guide for an easy bolt-on installation.

Check out these features on the 2014-2019 Corvette SXR Front Brake Package:

SXR 6-piston forged aluminum calipers
Fits inside 19" wheels (see diagram for clearance requirements)
15" curved vane Spec 37 SRP drilled and slotted only 2-piece brake rotors - designed for track use
BP-10 Compound brake pads
Calipers available in gloss black or red
DOT approved stainless steel braided flex lines included

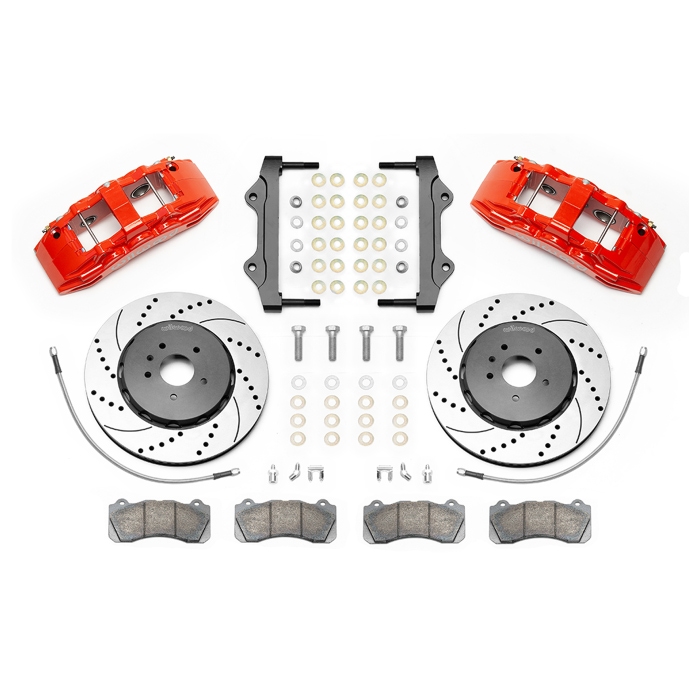

Bolt-On kit includes all necessary hardware and detailed installation guide

SX6R forged six piston calipers deliver heavy duty stopping power for the road or track. The caliper incorporates race technology into a body design with widespread adaptability. Radial mounting, multiple options for piston volume, and a rotor diameter ranging to 15.00" give this caliper the versatility necessary to suit all types of heavy weight braking requirements. The new SX6R is is largest caliper with the latest innovations incorporating an exclusive dust wiper seal that further protects the piston bore from dust and corrosion, allowing the caliper to be used in locales that mandate a method of environmental sealing.

The body of SX6R series is stress-flow forged from a premium grade aluminum alloy billet. Stress-flow forging realigns the metal's internal grain structure to flow within the contour of the caliper body. This process eliminates the stresses and interruptions to the internal grain structure that occur when machining a straight block billet. The results are a caliper with superior clamping efficiency and ultimate strength against fatigue, stresses, and distortion under load.

Big Brake Dynamic Lug Drive hats incorporate a new rotor mounting system that eliminates the rotor bolts and allows the rotors to move independently of the hats as they expand and contract through heat cycles. All thermally generated stress is removed from the rotor attachment points. The rotors stay flatter and run truer. Brake response and pedal feel remain consistent. Pad knock back and rotor drag are eliminated. The hats are no longer distorted by stresses generated by thermal expansion and shrinkage of the rotors. All problems associated with thermal distortion, including bolt hole alignment issues when trying to re-install new rotors on a previously used hat, are eliminated.

SRP Drilled Performance Rotors feature a specially engineered directional cross drill and face slot pattern that improve brake response and pad performance throughout the entire range of light to heavy braking. The venting and cleaning action of the holes and slots will reduce pad glaze and disperse gasses and heat generated during the pad to rotor interface. The holes and slots also inhibit irregular pad compound build-up on the rotor faces resulting in smoother engagement and improved pedal response in all conditions. The material removed also contributes to lower rotating and unsprung suspension weight. Along with the excellent performance characteristics of this rotor design, each rotor is treated with a black electro coat to inhibit corrosion on all areas of the rotor. The high tech design, classic style, and aesthetic appeal of the SRP series are the perfect finishing touches to any wheel and tire detail.

Wilwood has been expertly designing and manufacturing high-performance disc brakes in the USA since 1977. Engineered and rigorously tested for the track, Wilwood brakes provide unsurpassed quality and performance with sleek, lightweight designs. Wilwood has dominated the motorsports arena for decades, making their street market brakes among the most technologically advanced around.

Wilwood Item Number 140-15743-D, 140-15743-DR

Since the companyâ€™s inception in 1977 by Billy Wood, Willwood has developed a substantial matrix of brake components and engineering techniques that allows them to quickly and reliably create brake systems for almost any application. With headquarters in Camarillo, California, Wilwood employs approximately 250 people. Wilwood's off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee - and right in the middle, theyâ€™re perfect for your Corvette too.
