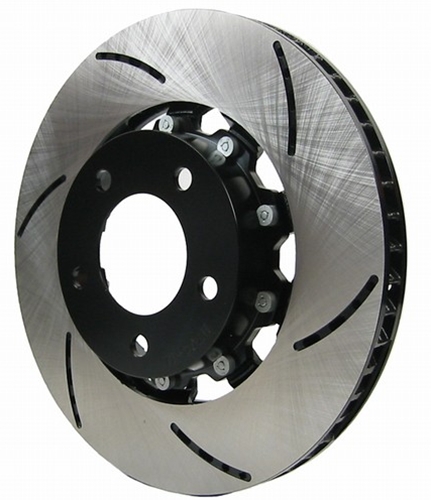

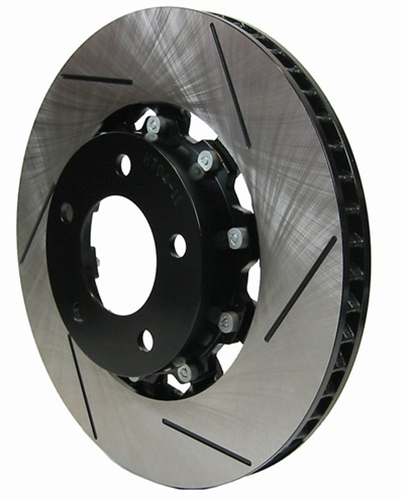

C6 Z06 Corvette Brake 14" Rotor RB 2 Piece (Front Pair Only) 06-13, Light Weight

Upgrade your 2006-2013 C6 Z06 Corvette with our 2-piece brake rotors.
Read this before purchasing the rotors and making your choice of brake pads.

    * Side: L/R
    * Position: Front
    * Size: 355x32mm (14" x 1.3")
    * (Minimum order:  2 Rotors)
    * Saves approx. Saves approx. 9 lbs from stock rotor weight.

Rotor Material: Racing Formula Alloyed Gray Iron & Heat treated
Surface: EDP Coating w/cross cut grinding on friction surface

NOTE: Our two-piece rear rotor hats for models with drum brakes are made of cast iron which retains the stock e-brake system.

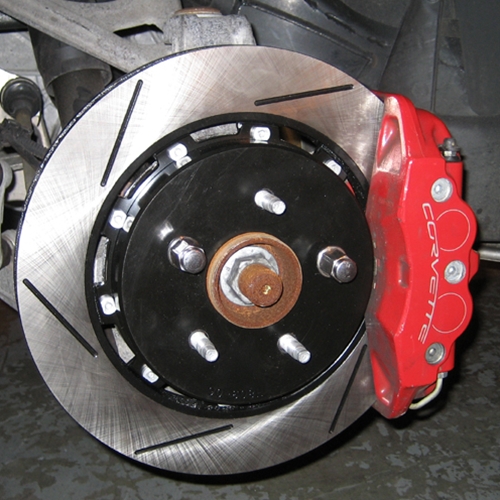

The Corvette Z06 2006 rotors were engineered to be the best stock replacement two-piece rotor on the performance market. This rotor is direct bolt-on, easy to install, no additional hardware needed, and an excellent upgrade for both street and track. Not only will the rotors last 3 times or more longer than competitions' two-piece rotors, they can deliver consistent brake torque under extreme heat, session after session. When it comes to replacement - operating cost over the time will be lower than one-piece rotor.

Rotor Material: Racing Formula Alloyed Gray Iron & Heat treated
Machining: Drilled & Slotted
Surface: EDP Coating w/cross cut grinding on friction surface

NOTE: Retaining and jack screw holes have been removed to prevent the screws from rusting and causing difficult removal of the rotors. Our two-piece rotor hats are made of aluminum which is easier for installation and removal. See detail view here.

Material:

   1. Alloyed iron formula adds strength and heat resistance. Heat treating further improves rotor performance for a more uniform and stabilized microstructure.

Design:

   1. The cooling vanes are of a convergent nozzle design, which increases airflow and turbulence and makes discs cooler. (Illustration #1)


   2. The center-mount flanges for hat mounting to the rotor ring have several benefits. (Illustration #2)
          * It allows the ring to be used on either side of the vehicle simply by mounting the hat on either side of the ring (unidirectional).
          * The stress load transferred from the ring to the hat is balanced.
          * Air inlets are widely open to both inboard and outboard sides of the rotor. More air suctions and even temperature on both sides of the disc surface.
          * Heat transfer from the disc surfaces to the hat is even and minimized by increasing the flange length and the airflow around the flanges.
          * Mounting flanges are on both friction surfaces ultimately provides excellent heat balance.

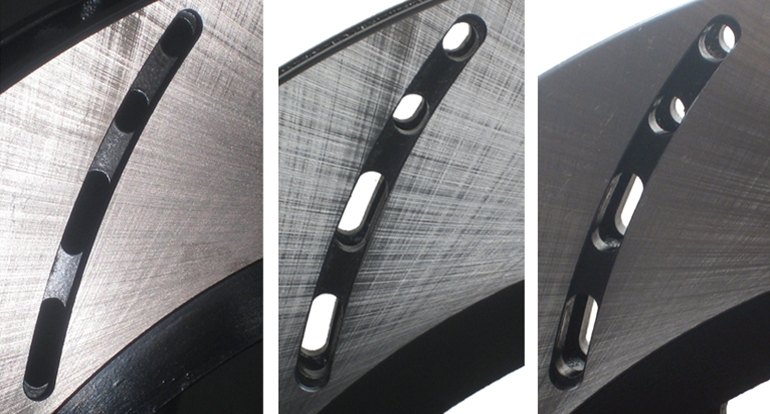

   3. Exclusive full floating design with 10.9 grade alloyed hardware. Hardware is DACRO coated and crimp locking. DACRO is highly corrosion resistant and provides a film for easier movement between the hat and rotor ring as disc expands and contracts and the crimp design provides positive engagement without rattling or torque loss at temperature.
