Forged Narrow Superlite 4R Caliper and Bracket Upgrade Kit for Corvette C5 and C6, Nickel Plated

Forged Narrow Superlite 4R Caliper and Bracket Upgrade Kit for Corvette C5-C6

Superlite 4R four piston radial mount rear caliper kits add big brake stopping power and style to any 1997-2013 C5 or C6 Corvette rear suspension. These caliper kits mount in the stock location and replace the OE calipers on all models that have been updated with 13.00” rotors from the 2005-09 C6 Z51 models. Superlite 4R calipers incorporate race proven technology in a high strength, center bridge reinforced forged body design. They provide positive and confident pedal response that is matched to the OE master cylinder output and fully compatible with the ABS system. BP-20 dual-sport compound Smart Pads provide clean and quiet driving on the street, with improved friction and high temperature fade resistance for auto-cross and other sport driving applications.

Calipers: Info / Part Number:
Left Hand - Part No: 120-11783-N
Right Hand - Part No: 120-11783-N
Type: Forged Narrow Superlite 4R
Finish Color: Nickel Plate
Piston Count: 4
Piston Area (In²): 2.46
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 7416
Brake Pad Area (In²): 8.2
Brake Pad Volume (In³): 3.8
Pad Compound: BP-20

Calipers: Info / Part Number:
O-ring Kit: 130-2479
Replacement Dustboot: N-A
Replacement Piston 1: 200-7515
Replacement Piston 2: 200-7515
Replacement Piston 3: N-A
Replacement Piston 4: N-A
CrossOver O-Ring Kit: 130-10540
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: 230-7710
Wear Plate - Left Hand: 300-6596
Wear Plate - Right Hand: 300-6595
Pad Retainer: N-A
Bleed Screw Kit: 220-0627

Brake Line Kits: Info / Part Number:
Rear Line Kit:
Rear Line Kit:
220-8177
220-9101

1. Use flexline kit 220-8177 for all 1997-04 C5
2. Use flexline kit 220-9101 for all 2005-13 C6
3. Requires 2005-09 J55 code Z51 13.00” rear rotor.

THIS BRAKE KIT HAS AN AXLE OFFSET OF: 0

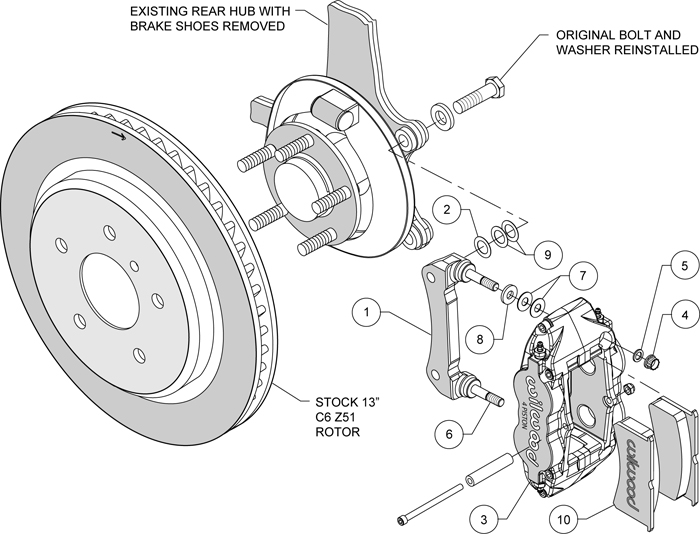

CHECK THE DIAGRAM ABOVE AND VERIFY THIS MEASUREMENT. THIS KIT MAY BE AVAILALE IN SEVERAL DIFFERENT OFFSETS

Optional : Thermlock insulated pistons, high-temp seals, Set of 4
Thermlock® pistons in the models block heat transfer from the pads and reduce temperatures in the caliper, fluid, and seals by up to 25% over standard stainless steel pistons. These are the go-to calipers for all types sustained hard braking on dirt and asphalt ovals and a wide range of off-road, rally and road course applications.
