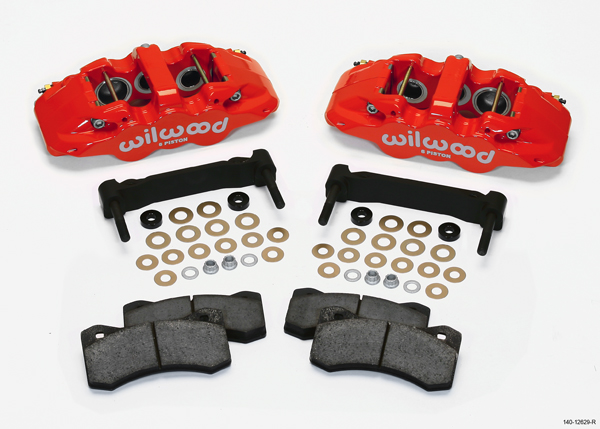

AERO6 Front Caliper, Pads and Bracket Upgrade Kit for Corvette C5 and C6, RED

Available Options:
Caliper Piston Option:: Select:

$1,049.59

Model: 140-12629-R Manufacturers: WILWOOD

Qty:

Reviews

Add to Wish List

Description

Aerolite 6R six piston radial mount front caliper kits add big brake stopping power and style to any 1997-2013 C5 or C6 Corvette front suspension. These kits replace the OE calipers on all models and mount in the stock caliper location. All the necessary hardware is included for correct mounting height and offset with the very affordable one-piece 13.38” Z51 or 13.97” Z06 OE style rotors. Aerolite 6R calipers incorporate race proven technology in a high strength forged triple bridge body design. They provide positive and confident pedal response that is matched to the OE master cylinder output and fully compatible with the ABS system. BP-20 dual-sport compound Smart Pads provide clean and quiet driving on the street, with improved friction and high temperature fade resistance for auto-cross and other sport driving applications.

Calipers: Info / Part Number:
Left Hand - Part No: 120-13290-N
Right Hand - Part No: 120-13289-N
Type: AERO6
Finish Color: Nickel Plate
Piston Count: 6
Piston Area (In²): 4.04
Piston Type: Stainless
Mount Type: Radial
Brake Pad Plate: 6617
Brake Pad Area (In²): 11.1
Brake Pad Volume (In³): 5.2
Pad Compound: BP-20

Rotors: Info / Part Number:
Left Hand - Part No:
Right Hand - Part No:
Type: N-A
Style:
Surface Finish:
Material:
Outside Diameter (in):
Width (in):
Vane Count:
Design Type:
Bedded:
Dynamically Balanced:

Calipers: Info / Part Number:
O-ring Kit: 130-5972
Replacement Dustboot: N-A
Replacement Piston 1: 200-7519
Replacement Piston 2: 200-7513
Replacement Piston 3: 200-7513
Replacement Piston 4: N-A
CrossOver O-Ring Kit: N-A
Crossover Tube: N-A
Self-Bleeder Tube: N-A
Bridge Bolt Kit: N-A
Wear Plate - Left Hand: 300-5876
Wear Plate - Right Hand: 300-5876
Pad Retainer: N-A
Bleed Screw Kit: 220-0627

Brake Line Kits: Info / Part Number:
Front Line Kit: 220-8176
Front Line Kit: 220-9100

1. Requires 2005-13 J55 code Z51 13.38” or J56 code Z06 13.97” front rotors for all model years.
2. Use flexline kit 220-8176 for all 1997-04 C5
3. Use flexline kit 220-9100 for all 2005-13 C6

THIS BRAKE KIT HAS AN HUB OFFSET OF:
This Hub Offset will move the wheels inward or outward from the fenderby this amount on each side of the vehicle
NOTE: Check "Figure 2. Wheel Clearance Diagram" in the installation Instructions below to verify you have adequate wheel clearance for this kit.

Optional : Thermlock insulated pistons, high-temp seals, Set of 12
Thermlock® pistons in the models block heat transfer from the pads and reduce temperatures in the caliper, fluid, and seals by up to 25% over standard stainless steel pistons. These are the go-to calipers for all types sustained hard braking on dirt and asphalt ovals and a wide range of off-road, rally and road course applications.
