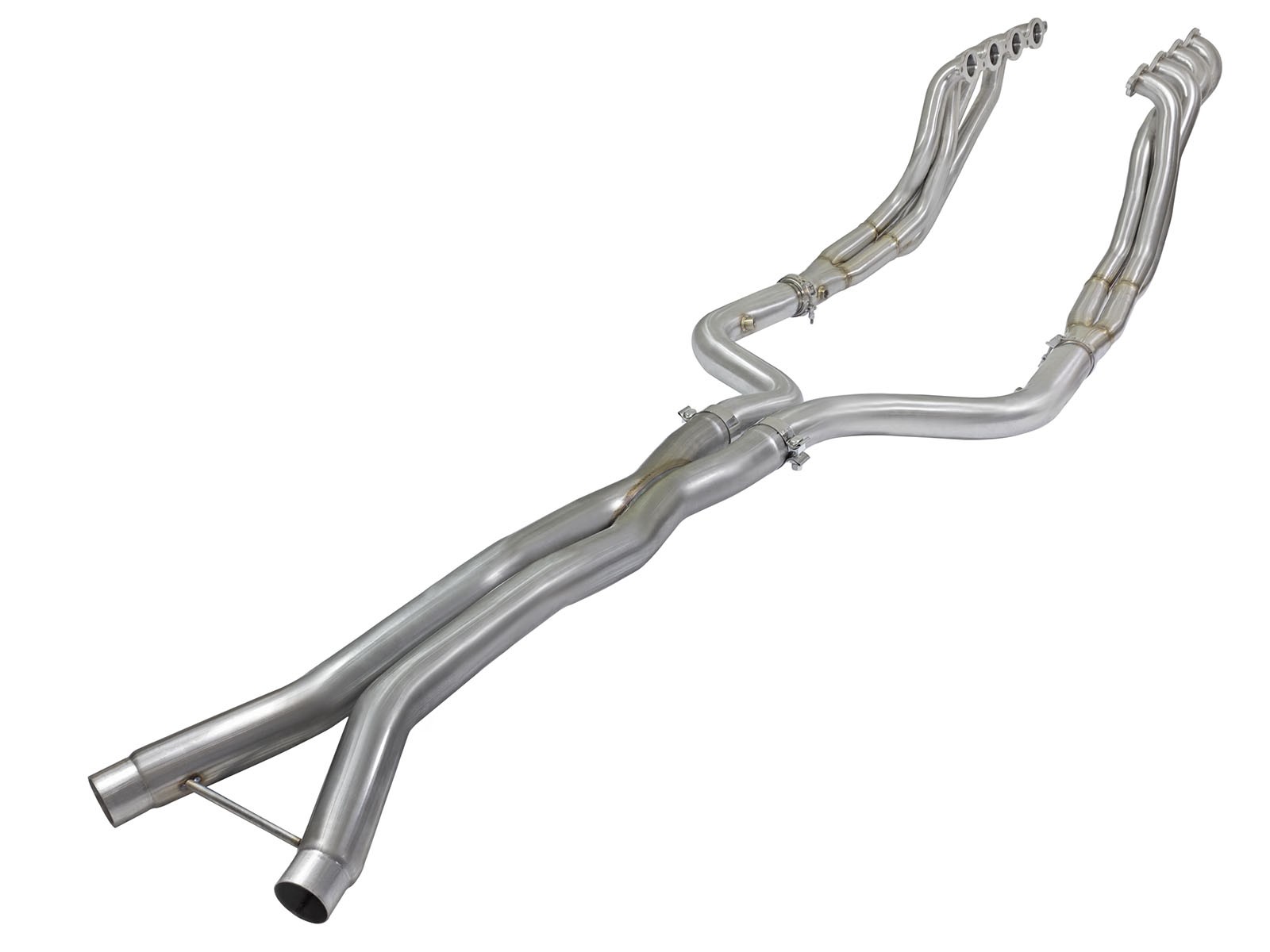

Camaro SS 16-17 V8-6.2L Twisted Steel Tri-Y Long Tube Header & X-Pipe; RACE Series

Twisted Steel Tri-Y Headers Features:
•1-7/8” primary tubing which merge to 2-1/8” secondary tubes into a 3" collector
•4-2-1 Tri-Y designed headers with 3" collector
•3/8" thick, 304 stainless steel head flanges
•Optimized tube lengths improve flow and performance
•100% hand TIG-welded construction ensures optimal strength and durability
•Incorporates a second bung for either a wide-band O2 gauge or auxiliary instrumentation
•Gasket set included
X-Pipe: (Race Version):
•Race version for increased performance and a more aggressive sound
•V-band flanges with included V-band clamps for a secure leak-free seal
•Incorporates an X-Pipe to balance and evenly distribute exhaust pulses traveling through the exhaust system, minimizing exhaust drone
•This is a direct bolt on system when used with aFe Axle-Back P/N: 49-34068. Also fits stock exhaust system with minor cutting
Testing:
•In recent testing the “Street” version produced +24 horsepower and +27 lbs. x ft. of torque on our in house dyno. (Tested on a 2016 Chevrolet Camaro V8-6.2L w/aFe axle-back P/N: 49-34068)

Tri-Y Design:
Paired opposite firing cylinders with specifically tuned primary lengths maximizes scavenging and increases torque throughout the power band.

304 Stainless Steel Laser Cut Header Flanges:
High quality laser cut 304 stainless steel header flanges provides superior sealing at the head surface.

O2 Sensors:
Includes an additional bung for either a wide-band O2 gauge or auxiliary instrumentation.

304 Stainless Steel Tubing:
High grade stainless tubing with a uniform brushed finish provides a beautiful look and high resistance to corrosion.

TIG-Welded:
100% TIG-Welded by certified craftsmen for race proven strength and durability. TIG-Welding provides the strongest welds reducing stress cracks.

V-Band Connection:
Machined flanges and USA made stainless v-band clamps provide simple to install leak-free joints.

X-Pipe Balance Tube:
The equalizer balance tube evenly distributes exhaust pulses traveling through the exhaust system. This creates a more efficient flow for better performance while minimizing exhaust drone.

Mandrel Bent Tubing:
This system is constructed of mandrel bent, stainless steel brushed tubing for maximum performance, corrosion resistance and strength eliminating cracking.

This is a "Race Only" product used solely for competition. Its use is limited to closed-course and open-course racing that is formally sanctioned by a recognized racing organization. Any other use including recreational off-road use could be in violation of local, state and federal laws. This system is not currently CARB exempt and is not available for sale in California or for use on any vehicle registered with the California Department of Motor Vehicle.

aFe Twisted Steel Headers & X-Pipe are engineered and manufactured in our Corona, California manufacturing facility.
