16-22+ Camaro SS Hi-Ram Intake Manifold W/O Port EFI, 92mm Throttle Body

$909.95

Model: 300-143 Manufacturers: Holley

Qty:

Add to Wish List

Description

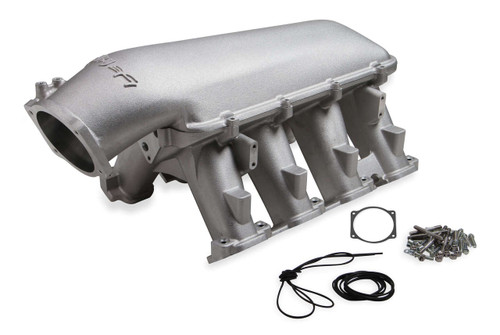

HolleyÂ® being an undeniable leader in fuel systems for over 100 years, Holley offers a wide range of performance carburetors, fuel pumps, intake manifolds and engine dressâ€“up products for street performance, race, and marine applications. Holley carburetors have powered almost every NHRA Proâ€“Stock champion and every NASCAR Sprint Cup team for 40 years. As a single solution, or partnered with products from other Holley companies such as Hooker, Flowtech, NOS, Weiand, and others, the Holley products provide the quality and performance you've been looking for. Hi-Ram Modular EFI Cast Satin Intake Manifold with Longitudinal Mount Plenum (300-142) by HolleyÂ®. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more!

Modular Design w/ Removable Top
Overall Height: 13.34” (w/ EFI Top - 95mm or 105mm) – See Drawing
A-B Height: 12.10” (w/ Carb Style Top - 2 x 4150 or 2 x 4500) – See Drawing
Height at Plenum Flange: 9.44”
Port Size: 2.06” High x 1.53” Wide
Runner Length: Approx. 6.5”
Large Plenum Volume of 549 Cubic Inches (w/ 1 x 95mm or 1 x 105mm Throttle Body Top)
Available With or Without Injector Ports in the Runners
Intakes w/ Injector Ports Include Fuel Rails w/ Dual Mounting (1.48” or 2.56” O-ring to O-ring injector length)
Fuel Rails are Anodized, Laser Etched, and Machined for 8AN O-Ring Fittings at Each End
Rear of Plenum Machined for MAP & 3 Vacuum Ports
Head Flange has Clearance for Fuel Supply to High Pressure Pump
Increased Runner Wall Thickness for Custom Porting at the Plenum to Runner Entry on Each Runner
O-Ring Seals at Cylinder Heads & Plenum Top
Easy Assembly w/ Top Mounted Screws on Plenum Top (all except front 2 screws)
Several Top Options: 1 x 95mm, 1 x 105mm, 2 x 4150, 2 x 4500, or Blank Flange for Custom Throttle Bodies
3500-8000+ RPM Power Band
Due to CARB restrictions, this product is not legal to sell or ship to California,

This product was added to our catalog on Wednesday 13 July, 2022.

Points & Rewards Information

Points Credit : 910 points Currently valued at $27.30 Write a Review and earn $1.5 worth of points. Please check the Reward Point Program FAQ for more information.
